AmeriGlide Hercules II Residential Lift
Call 1 (877) 852-3217 for the lowest price!
AmeriGlide's Hercules II Residential Platform Lift is the most budget and installer friendly lift available. It includes all the features that make it the correct choice for most residential applications - right out of the box. Some assembly required.
The features of the AmeriGlide Hercules II include a solid platform, a safety pan switch, paddle-type platform controls, and top and bottom limit switches. This lift is both ASME A18.1, Section 5 and CSA B44.1 - ASME 17.5 compliant.
The features of the AmeriGlide Hercules II include a solid platform, a safety pan switch, paddle-type platform controls, and top and bottom limit switches. This lift is both ASME A18.1, Section 5 and CSA B44.1 - ASME 17.5 compliant.
Additional Images
Click on an image to enlarge.
- Lifting Capacity: 600 lb
- Standard Lift Height: 53"
- Maximum Lift Height Upgrade: 171"
- Lift Speed (FPM): 10
- Maximum Stops: 3
- Portable: No
- Arrives Assembled: No
- Drive System: 53" - 125" Acme Screw Drive, 149" - 171" Ball Screw Drive
- Optional Drive Systems: None Available
- Battery Powered Option: Yes
- Constant Pressure Platform Control: Yes
- Emergency Stop Platform Control: Included
- Alarm Button: Optional Audible Alarm

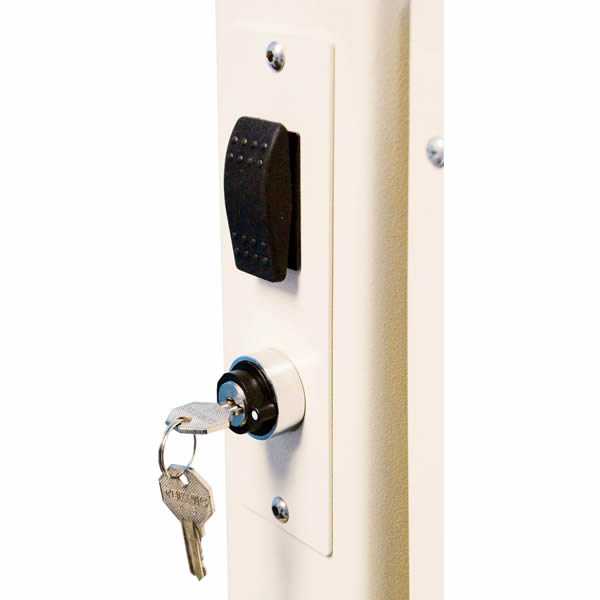

- Keyed Platform Control: Optional
- Call-Send Controls: Optional Non-Keyed & Keyed Call-Send
- Platform Type: Solid with Non-Skid Coating
- Platform Size: 36" x 48" Platform (34" Usable Width)
- Optional Platform Sizes: 36" x 54", 36" x 60", 42" x 54" (40" Usable Width)
- Platform Configuration: Straight-Thru Access
- Optional Platform Configurations: Same Side Entry-Exit, Adjacent Access
- Upper Landing Gate: Optional
- Upper Access Ramp: None Available
- Lower Access Ramp: Automatic Folding, Optional Fixed
- Grab Rail: Included
- Guard Panel: 36", Optional 42"
Product Video
- Lifting Height
- Crating & Assembly
- Tower Orientation
- Power Source
- Electronics
- Platform Type
- Platform Access
- Platform Gate
- Platform Controls
- Platform Control Options
- Platform Options
- Ramp Type & Pit Switch
- Landing Controls
- Landing Gate
- Fire Rated Doors
- Interlocks
- Accessories
- Additional Delivery Services
- 53" Max Lift Height, Acme Screw Drive
$0.00
- 77" Max Lift Height, Acme Screw Drive
$730.00
- 101" Max Lift Height, Acme Screw Drive
$1,840.00
- 125" Max Lift Height, Acme Screw Drive
$3,450.00
- 149" Max Lift Height, Ball Screw Drive
$5,250.00
- 171" Max Lift Height, Ball Screw Drive
$6,630.00
- No Crating - Some assembly is required.
$0.00
- 36" x 48" or 36" x 54" Platform
$0.00
- 53" Unit Shipped Crated & Fully Assembled
$460.00
- 36" x 60" or 42" x 54" Platform - Requires Extra Large Crate
$0.00
- 53" Unit Shipped Crated & Fully Assembled
$691.00
- Tower On The Left
$0.00
- Tower On The Right
$0.00
- AC Powered
$0.00
- DC Battery Powered - Battery provides 15-20 cycles during power outage. Batteries included.
$1,001.00
- A standard electronics control board will work with a landing gate, one call/send only, and 36" side walls.
$0.00
- Standard Electronics Control Board
$0.00
- A commercial electronics control board allows operation with doors, gates, multiple call/send controls, and other devices.
$0.00
- 42" high side walls require a Commercial Electronics Control Board
$0.00
- Commercial Electronics Control Board
$309.00
- Ball Screw Drive Models Include A Commercial Electronics Control Board
$0.00
- 36" x 48" Straight Thru (34" Usable Width)
$0.00
- 36" x 54" Straight Thru (34" Usable Width)
$154.00
- 36" x 60" Straight Thru (34" Usable Width)
$246.00
- 42" x 54" Straight Thru (40" Usable Width)
$491.00
- 36" x 54" 90 Degree (34" Usable Width)
$368.00
- 36" x 60" 90 Degree (34" Usable Width)
$492.00
- 42" x 54" 90 Degree (40" Usable Width)
$737.00
- Straight Thru or 90 Degree
$0.00
- Same Side Entry & Exit - Lift height must be 101" or greater.
$368.00
- Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate.
$0.00
- Platform gates require 42" high side walls (found below).
$0.00
- No Platform Gate
$0.00
- Left Swing 36" Wide Straight Thru Platform Gate with Interlock
$615.00
- Right Swing 36" Wide Straight Thru Platform Gate with Interlock
$615.00
- Left Swing 42" Wide Straight Thru Platform Gate with Interlock
$861.00
- Right Swing 42" Wide Straight Thru Platform Gate with Interlock
$861.00
- Left Swing 90 Degree Platform Gate with Interlock
$984.00
- Right Swing 90 Degree Platform Gate with Interlock
$984.00
- Paddle Controls with Emergency Stop Button
$0.00
- Emergency Alarm & Lighted Button
$208.00
- Keylocks for Controls
$35.00
- Solid Platform with Safety Pan
$0.00
- Inside Grab Bar
$0.00
- 42" high side walls are required for lifts 8' and taller.
$0.00
- 42" high side walls are required for ANY lift with a platform gate.
$0.00
- 42" high side walls require a Commercial Electronics Control Board
$0.00
- 36" High Side Walls
$0.00
- 42" High Side Walls
$154.00
- Automatic Ramp
$0.00
- Fixed Ramp
$0.00
- No Ramp with Pit Switch Option
$123.00
- Call/Send Control Station (each)
$119.00
- Wireless Call/Send Control Stations (pair)
$479.00
- Keylocks for Controls (each)
$34.00
- Landing gates below include an interlock and a call/send control built into the gate.
$0.00
- Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)
$809.00
- Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)
$809.00
- Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)
$979.00
- Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)
$979.00
- Keylocks for Controls (each)
$34.00
- Landing gates below include an interlock only.
$0.00
- Left Swing 36" Wide Landing Gate with Interlock Only (each)
$739.00
- Right Swing 36" Wide Landing Gate with Interlock Only (each)
$739.00
- Left Swing 42" Wide Landing Gate with Interlock Only (each)
$909.00
- Right Swing 42" Wide Landing Gate with Interlock Only (each)
$909.00
- Keylocks for Controls (each)
$34.00
- No Door
$0.00
- Fire-Rated Hoistway Door with EMI - Left (each)
$2,079.00
- Fire-Rated Hoistway Door with EMI - Right (each)
$2,079.00
- Fire-Rated Hoistway Door with Electric Strike - Left (each)
$2,219.00
- Fire-Rated Hoistway Door with Electric Strike - Right (each)
$2,219.00
- Surface mount EMI interlocks below are for a customer provided door or gate.
$0.00
- Left Swing Top Landing Door/Gate EMI Interlock (each)
$409.00
- Right Swing Top Landing Door/Gate EMI Interlock (each)
$409.00
- Flush mount electric strike interlocks below are for a customer provided door or gate.
$0.00
- Top Landing Electric Strike Interlock - Metal Frame (each)
$409.00
- Bottom Landing Electric Strike Interlock - Metal Frame (each)
$409.00
- Top Landing Electric Strike Interlock - Wood Frame (each)
$409.00
- Bottom Landing Electric Strike Interlock - Wood Frame (each)
$409.00
- Other Interlock Options
$0.00
- Keyed Dead Latch for Flush Mount Electric Strike Interlock (each)
$139.00
- Wiring For Interlock (per landing)
$159.00
- Anchor Bolt Kit
$0.00
- Tower Braces
$155.00
- 3rd Stop Wiring Charge
$493.00
- Phone Jack
$138.00
- Emergency Light
$138.00
- Fascia Panel (per foot)
$59.00
- Automatic Door Opener - Requires Upgraded Electronics
$2,349.00
- Free Liftgate Service on 53" Units As Requested
$0.00
Customer Reviews
| 1 review | ||
|
|
|
0 |
|---|---|---|
|
|
|
1 |
|
|
|
0 |
|
|
|
0 |
|
|
|
0 |
Sort by
| Huge Help! | |
|
Jan 30, 2011 8:18 AM
|
|
|---|---|
| Son-in-law from Atlanta, GA would recommend this to a friend. | |
| A Little About Myself | |
| Pros |
Shipping was very timely and all sales were handled very professionally. Installation went well, for a first timer, do-it-yourself type.
|
| Cons |
Had to make some field condition adjustments on the wiring and the battery backup was not included in the shipment.
|
|
Very functional. Definitely a better option than using an extensive supply of ramps.
|
|
| 13 of 14 people found this review helpful | |
