Harmar Summit AC Straight Stair Lift

Harmar Summit AC Straight Stair Lift
Need Assistance? Call 1 (877) 852-3215.
Product Review
(0)
(0)

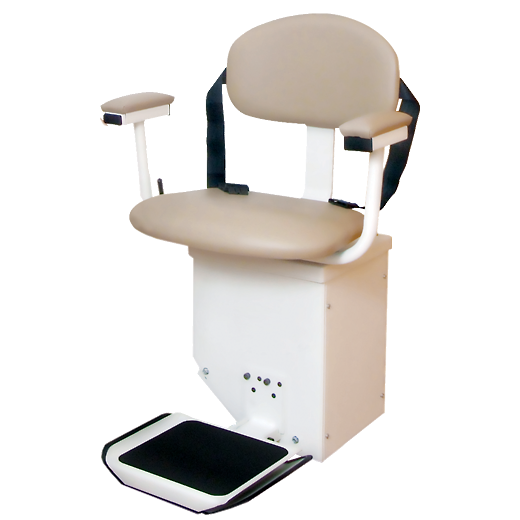

Harmar Summit AC Straight Stair Lift
Click to enlarge

$2,795.00

Plus Shipping

Add to Cart

Harmar's SL350AC Stair Lift is engineered with a carriage that is pre-installed on a short section of the durable extruded aluminum track. The backrest has three different settings, and the fold-up footrest adjusts to two different heights for the utmost in custom comfort. The spacious, wide seat features thick padding and attractive upholstery.

Features:
  • Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
  • Mounts to the stairs (not the wall) on either side of staircase
  • Operates on standard 115V AC household current
  • Extruded aluminum track is available in custom lengths
  • Seat and footrest fold to save space
  • Separate controls at top and bottom of stairs

Additional Images

Click on an image to enlarge.

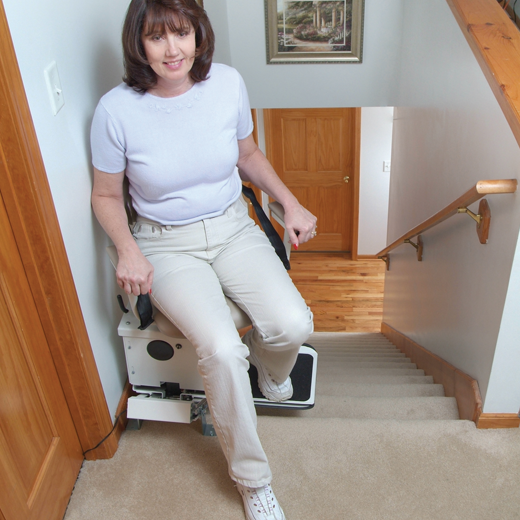

  • Showing Person at Top of Stairs with Chair Swiveled to Exit
spacer
spacer
  • Drive TypeCable
  • Uses BatteriesNo
  • Standard Capacity350 lb
  • Standard Track Length (up to)15.5'
  • Maximum Track Length (up to)25'
  • Seat Width17.5"
  • Seat Depth14"
  • Swivel SeatYes
  • Seat Folds UpYes
  • Arms Fold UpNo
  • Constant Pressure ControlsYes
  • Footrest Safety SensorYes
  • Unit Footprint, In Use24.5"
  • Unit Footprint, Parked14"
  • Track Footprint12"
  • Track Width8"
  • Call Stations IncludedWired
  • Rail Angle, Min30°
  • Rail Angle, Max45°
  • Digital Diagnostics DisplayNo
  • Key LockNo
spacer
Stair Lift Overview
Available Options
Click on the categories in the left column to view the options available.
  • Vinyl Seat Color
  • Seat Size
  • Options
  • Track Length (15' is Standard *)
  • Orientation (looking UP the staircase)
  • Installation
  • Installation Permit
  • Installation Special Cases
  • Measurements
  • Light Almond

    $0.00

    Light Almond Seat - Summit Stair Lift

spacer

  • 17.5" W

    $0.00

    No Image
  • 21" W

    $350.00

    No Image
  • Flip-Up Armrest Seat (19" W)

    $350.00

    No Image

spacer

  • Keylock Package - Keyed Base & Keyed Call-Send Controls

    $443.00

    No Image
  • Keyed Base Only

    $236.00

    No Image
  • Grocery Basket

    $293.00

    No Image
  • Wireless Call/Send Controls

    $443.00

    No Image

spacer

  • * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.

    $0.00

    No Image
  • 15' of track * (180")

    $0.00

    No Image
  • Custom Cut track Less Than 16'

    $150.00

    No Image
  • Track length 16' and over reduces weight capacity to 250 pounds

    $0.00

    No Image
  • Custom Cut 16' to 20' of track 250 lb Capacity

    $350.00

    No Image
  • Custom Cut 20' to 25' of track 250 lb Capacity

    $565.00

    No Image
  • 20' of track Uncut 250 lb Capacity

    $250.00

    No Image
  • 25' of track Uncut 250 lb Capacity

    $565.00

    No Image

spacer

  • The stair lift will be on the left

    $0.00

    No Image
  • The stair lift will be on the right

    $0.00

    No Image

spacer

  • NOTE: We do not perform installations in Oregon or Washington. Please choose Self-Installation at checkout if you live there.

    $0.00

    No Image
  • Self Installation

    $0.00

    No Image
  • Nationwide Installation (Not available in Oregon or Washington)

    $599.00

    No Image
  • Nationwide Installation and Measurement Service (Not available in Oregon or Washington)

    $749.00

    No Image
  • Double Stair Lift Installation Service - Per Stair Lift (Not available in Oregon or Washington)

    $437.50

    No Image
  • Stair Lift Removal and Disposal (Not available in Oregon or Washington)

    $499.00

    No Image

spacer

  • License / Permit / Inspection

    $425.00

    No Image
  • Permit and Inspection

    $350.00

    No Image
  • Permit (Required in Kentucky for EACH item being installed)

    $87.50

    No Image
  • Permit & Inspection (Required in Georgia for EACH item being installed)

    $250.00

    No Image
  • Permit & Inspection (Required in Alabama. Additional units incur additional fee.)

    $300.00

    No Image

spacer

  • Installation On Concrete, Steel, or Tile Stairs

    $300.00

    No Image
  • Installation In Remote or Limited Access Location

    $345.00

    No Image

spacer

  • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.

    $0.00

    No Image
  • 1. Overall length

    $0.00

    No Image
  • 2. Top stair to bottom stair

    $0.00

    No Image
  • 3. Staircase width

    $0.00

    No Image
  • 4. Bottom clearance

    $0.00

    No Image
  • 5. Rise of one step

    $0.00

    No Image
  • 6. Tread of one step

    $0.00

    No Image
  • 7. Diagonal

    $0.00

    No Image
  • 8. Door at the top

    $0.00

    No Image
  • Need help measuring? Print out the "How to Measure" worksheet.

    $0.00

    No Image

spacer

spacer
