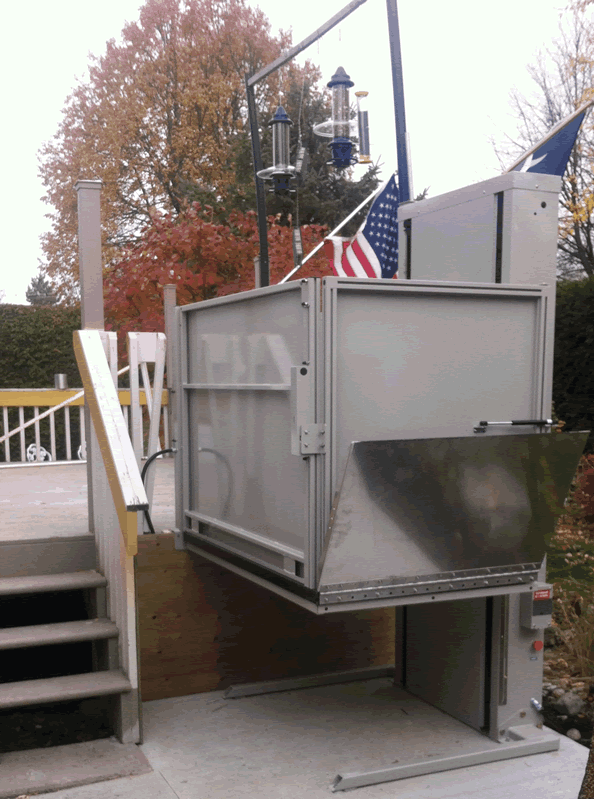

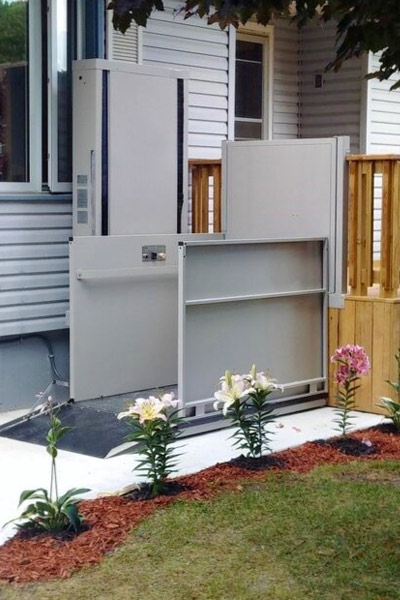

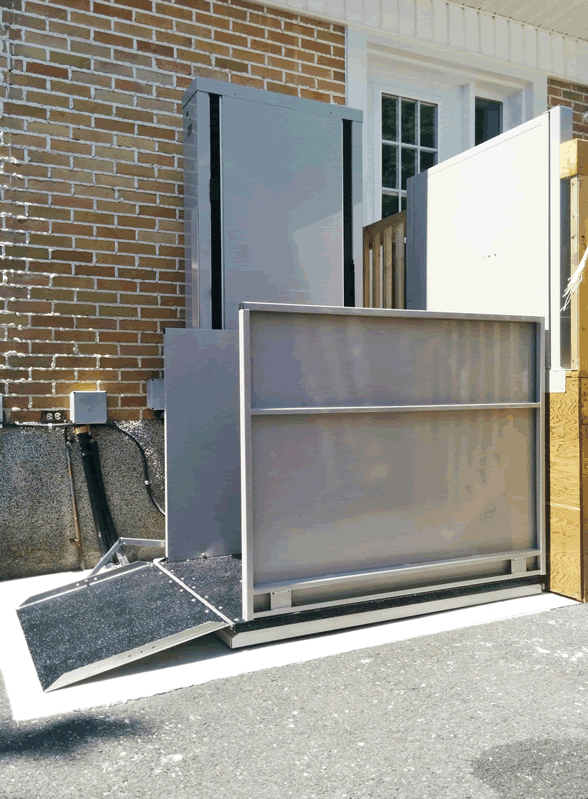

AmeriGlide Hercules 750 Residential
Click to enlarge

$3,495.00

Plus Shipping

Add to Cart

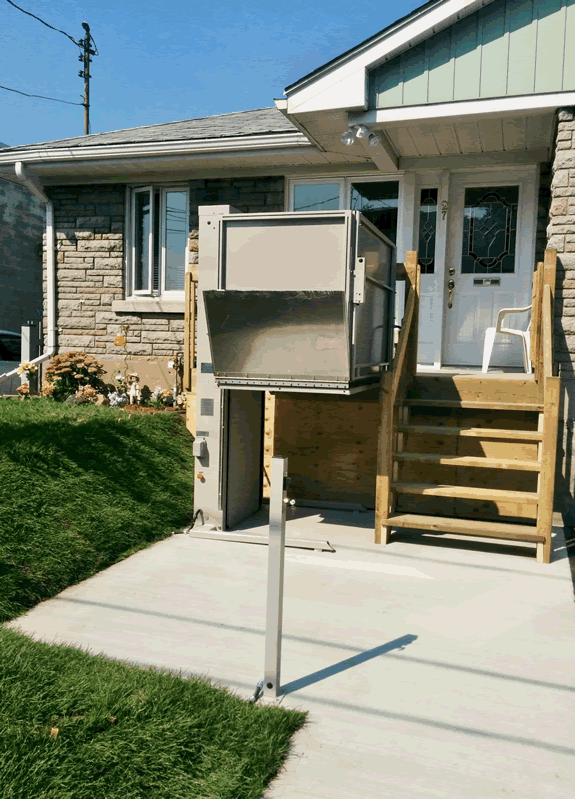

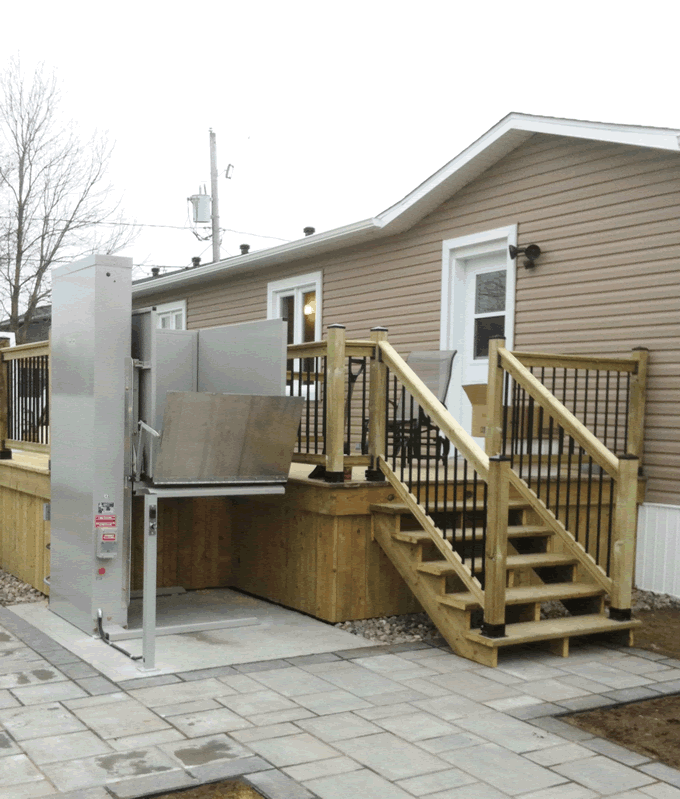

The AmeriGlide Hercules 750 Residential Vertical Lift is the ideal vertical platform lift for outdoor or indoor applications. Great for porches, decks, and garages too! The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions.

A 750 pound weight capacity comes standard on the Hercules, but a 1000-pound capacity is available as an option. Great for lifting large wheelchairs and two people at one time.

The acme screw direct drive makes the Hercules the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.

Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.

To learn more about the Hercules 750 Residential Vertical Lift, call and speak with our experienced VPL experts today.

If you need a fully enclosed Vertical Lift, see our AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift.

Additional Images

Click on an image to enlarge.





spacer
spacer
Authorized AmeriGlide Vertical Lift Provider
  • Lifting Capacity750 lb
  • Standard Lift Height64"
  • Maximum Lift Height Upgrade160"
  • Lift Speed (FPM)12
  • Maximum Stops3
  • Arrives AssembledNo
  • Drive SystemDirect Drive ACME Screw
  • Battery Powered OptionYes
  • Constant Pressure Platform ControlYes
  • Alarm ButtonIncluded
  • Platform TypeNon-skid (Epoxy crushed and recycled tires)
  • Platform SizeW 34"-36" x L 54"-60"
  • Optional Platform SizesCustom: W (31" to 42") x L (46" to 66")
  • Platform ConfigurationStraight-Thru Access
  • Optional Platform ConfigurationsSame Side Entry-Exit, 90 Degree Adjacent Access
  • Grab RailNot included
  • PortableOptional
spacer
Product Video
Available Options
Click on the categories in the left column to view the options available.
  • Residential Hercules DC 750 Includes
  • Power Source
  • Number of Stops
  • Lifting Height
  • Select Tower Bracket Type
  • Color of Unit
  • Fascia Panels
  • Platform / Tower Configuration
  • Guard Panels / Cab
  • Platform Canopy for 42" Panels (Rather Than Full Cab)
  • Wing Walls
  • Platform Dimensions (Dimensions are All Clear)
  • Platform Controls
  • Lower Landing (Platform) Orientation
  • Lower Landing Entrance (Interlock Included with Door/Gate)
  • Mid Landing Orientation (3 Stop Units Only)
  • Mid Landing Entrance (3 Stop Units Only, Interlock Included)
  • Upper Landing Orientation
  • Upper Landing Entrance (Interlock Included with Door/Gate)
  • Polycarbonate Gate Option
  • Interlocks (For Gates/Doors Provided by Others)
  • Call/Send Options
  • Auto Openers and Closers
  • Other Options
  • State Required Inspections / Permits / Evaluations
  • Installation (Within 200 miles of Raleigh)
  • Delivery Options
  • Delivery State
  • 455 Keys

    $0.00

    No Image
  • Rocker Switch

    $0.00

    No Image
  • Audible Emergency Alarm

    $0.00

    No Image
  • Pit Switch

    $0.00

    No Image
  • AC Power Cord and Interlock Wiring Kit (Interlocks Not Included)

    $0.00

    No Image

spacer

  • DC Battery Powered (2 x U1 Batteries Included)

    $0.00

    No Image
  • AC Powered

    $0.00

    No Image

spacer

  • Two Stop

    $0.00

    No Image
  • Three Stop

    $1,219.00

    No Image

spacer

  • 44" Maximum Lift Height (tower 72")

    $428.00

    No Image
  • 64" Maximum Lift Height (tower 92")

    $0.00

    No Image
  • 78" Maximum Lift Height (tower 108")

    $809.00

    No Image
  • 98" Maximum Lift Height (tower 126")

    $1,324.00

    No Image
  • 115" Maximum Lift Height (tower 158")

    $2,616.00

    No Image
  • 130" Maximum Lift Heigth (tower 158")

    $3,904.00

    No Image
  • 160" Maximum Lift Height (tower 190")

    $4,549.00

    No Image

spacer

  • For Tower Heights: 44", 64", 78", 98"

    $0.00

    No Image
  • No Bracket Desired (for 44", 64", 78", 98")

    $0.00

    No Image
  • Triangle (for 44", 64", 78", 98")

    $273.00

    No Image
  • Ground Bracket (for 44", 64", 78", 98")

    $325.00

    No Image
  • For Tower Heights 115", 130", 160" (bracket included in unit price)

    $0.00

    No Image
  • Triangle Bracket (for 115",130", 160")

    $0.00

    No Image
  • Ground Bracket (for 115",130", 160")

    $0.00

    No Image

spacer

  • Grey (standard)

    $0.00

    No Image
  • Custom Color (Call to Verify Color Available)

    $865.00

    No Image
  • Stainless Steel

    $6,180.00

    No Image

spacer

  • No Fascia Panels

    $0.00

    No Image
  • Fascia Panels can be any height up to 98". Specify height in decimal feet below.

    $0.00

    No Image
  • Galvanized Steel Fascia Panels (per foot)

    $35.00

    No Image
  • 3/16" Acrylic Lexan w/Aluminum Frame (per foot)

    $54.00

    No Image

spacer

  • Straight Thru Left Hand

    $0.00

    Straight Thru Left Hand
  • 90 Degree Left Hand

    $499.00

    90 Degree Left Hand
  • Straight Thru Right Hand

    $0.00

    Straight Thru Right Hand
  • 90 Degree Right Hand

    $499.00

    90 Degree Right Hand
  • Same Side Entry/Exit (For Hoistway Installs Only)

    $499.00

    No Image

spacer

  • 42" High Steel Guard Panels (Standard)

    $0.00

    No Image
  • 80" High Full Cab

    $3,554.00

    No Image

spacer

  • No Canopy

    $0.00

    No Image
  • Platform Canopy

    $706.00

    No Image

spacer

  • No Wing Walls

    $0.00

    No Image
  • 64" Travel

    $450.00

    No Image
  • 78" Travel

    $500.00

    No Image
  • 98" Travel

    $545.00

    No Image
  • 115" Travel

    $720.00

    No Image
  • 130" Travel

    $785.00

    No Image
  • 160" Travel

    $785.00

    No Image

spacer

  • 34" x 54"

    $0.00

    No Image
  • 34" x 60"

    $0.00

    No Image
  • 36" x 54"

    $0.00

    No Image
  • 36" x 60"

    $536.00

    No Image
  • Custom: W=30" to 42" by L=46" to 66"

    $536.00

    No Image

spacer

  • 40mm (1.57") Diameter Buttons on Platform

    $322.00

    No Image
  • 60mm (2.36") Diameter Buttons on Platform

    $342.00

    No Image
  • Joystick

    $184.00

    No Image
  • Additional Platform Controls (On Opposite Side)

    $507.00

    No Image
  • Lighted Buttons for COP

    $130.00

    No Image

spacer

  • Note: If Selecting a Platform Gate It Must Be Hinged Same Side as Tower

    $0.00

    No Image
  • Open on Left

    $0.00

    Open on Left
  • Open on Right

    $0.00

    Open on Right

spacer

  • A Call/Send Control must be ordered for every Door or Gate Ordered

    $0.00

    Open on Right
  • 34" or 36" W x 42" H Platform Gate

    $847.00

    No Image
  • 38" to 42" W x 42" H Platform Gate

    $1,052.00

    No Image

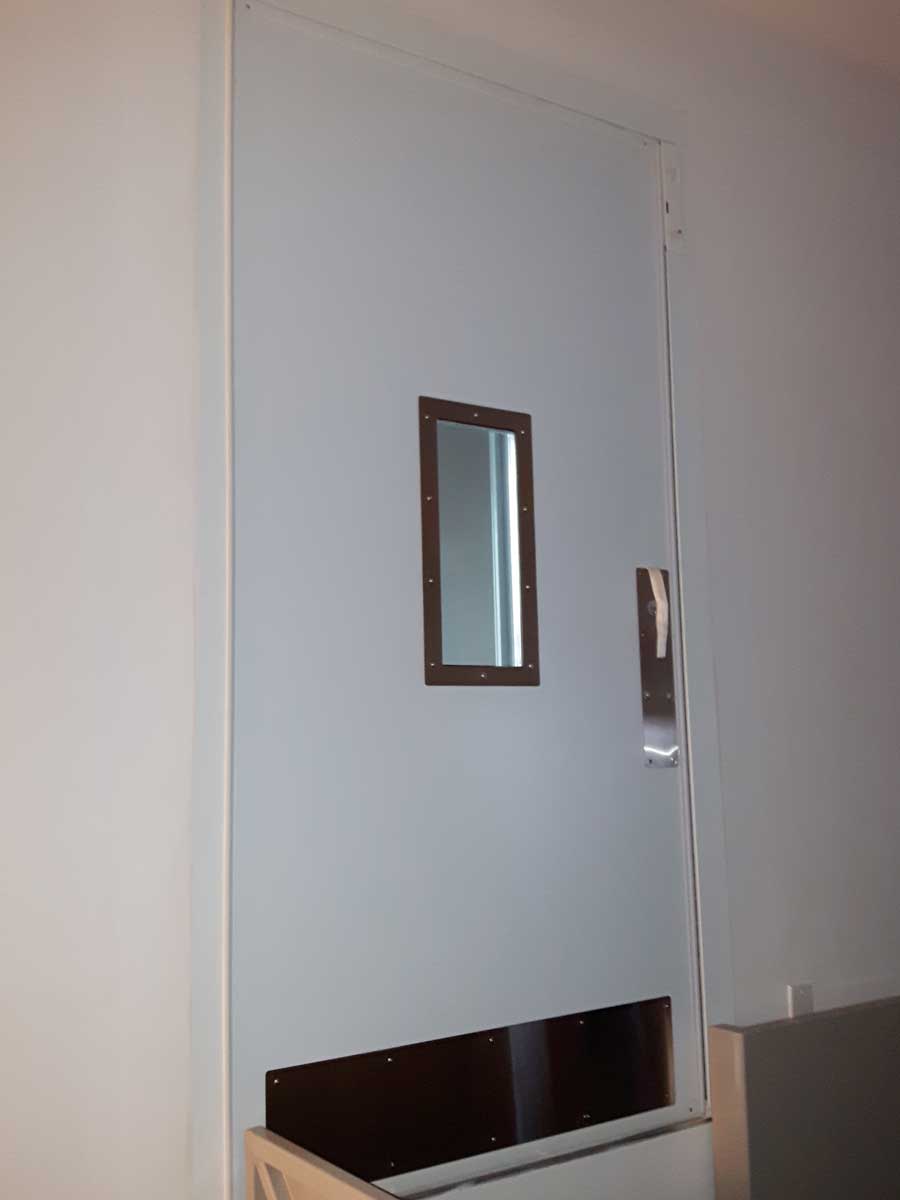

  • Door 80" H x 36" W Interior

    $829.00

    Hercules Door 36" x 80" Interior

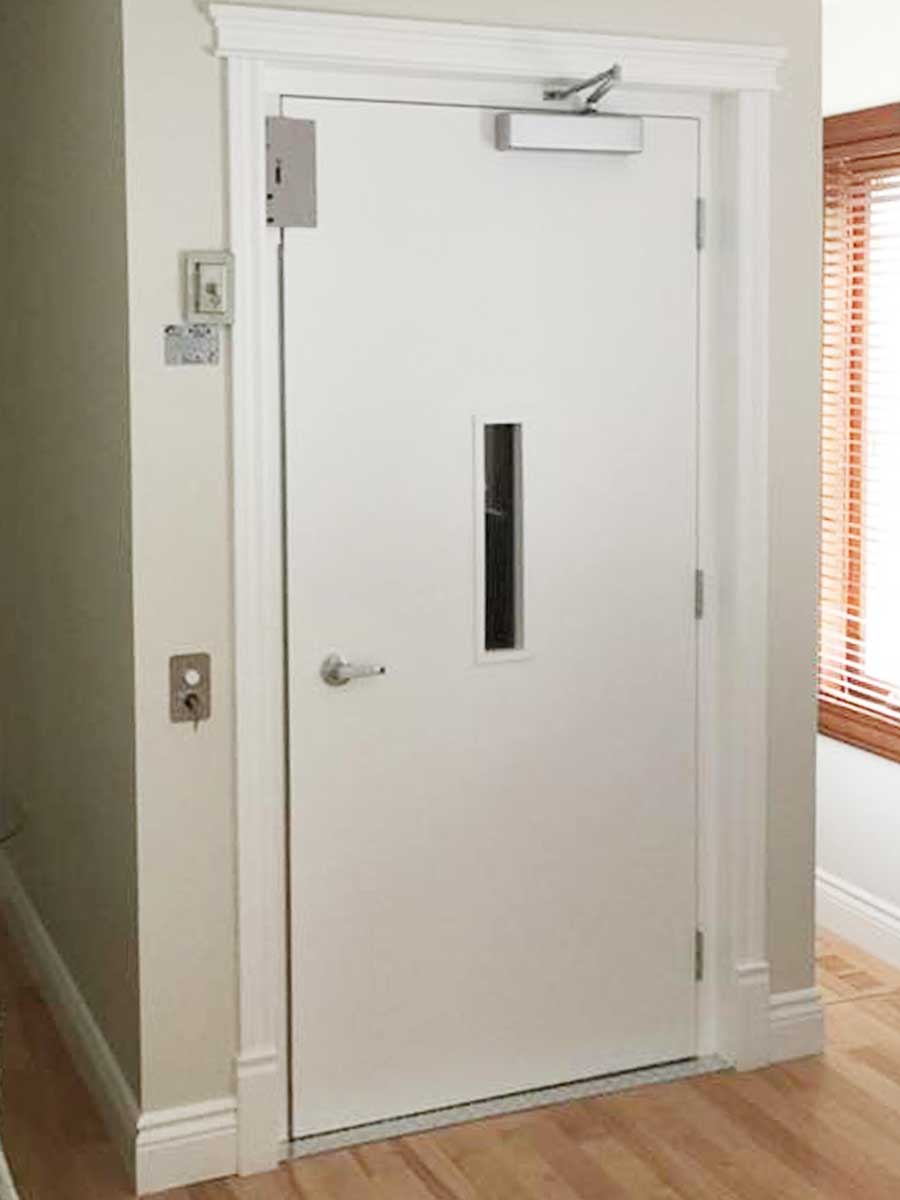

  • Door 80" H x 36" W Exterior

    $1,540.00

    Hercules Door 36" x 80" Exterior

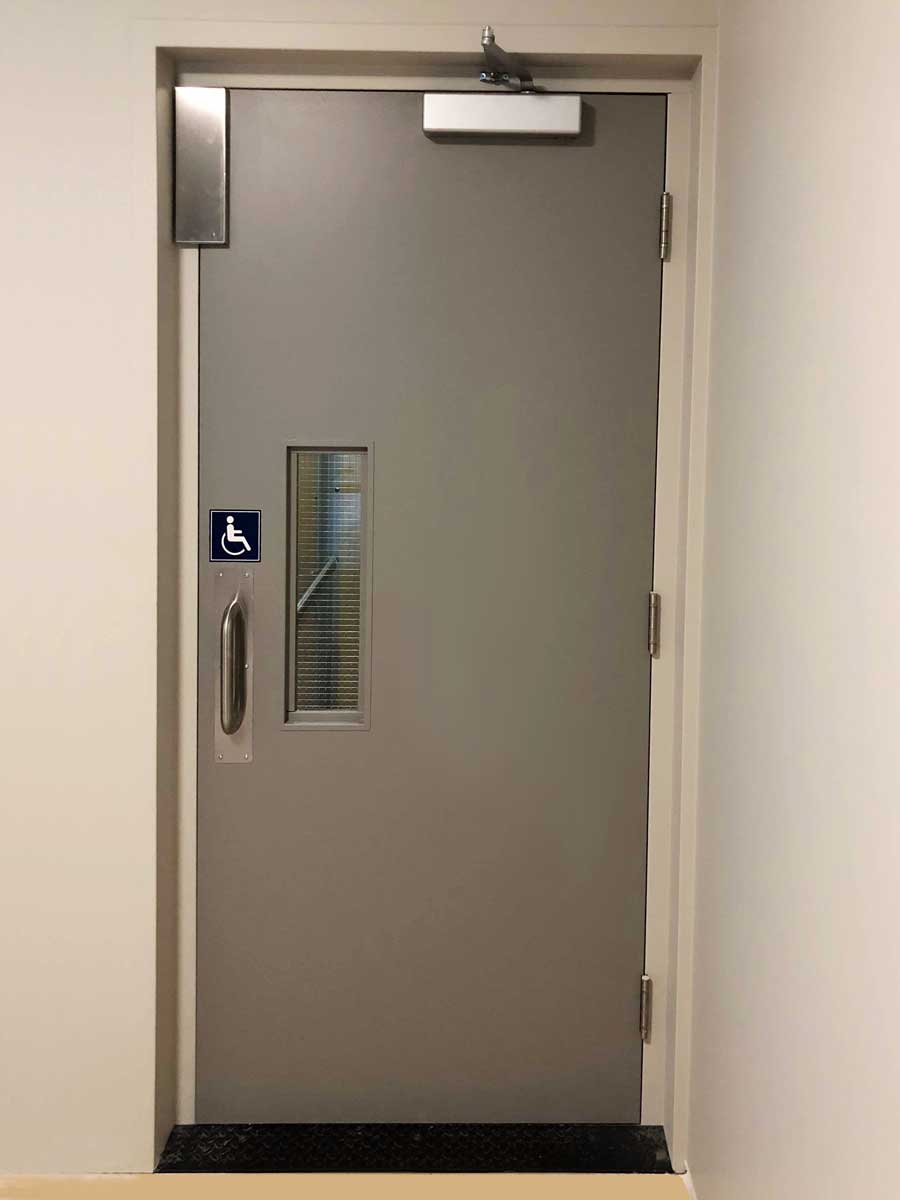

  • Door 80" H x 36" W Fire Rated

    $1,244.00

    Hercules Door 36" x 80" Fire Rated

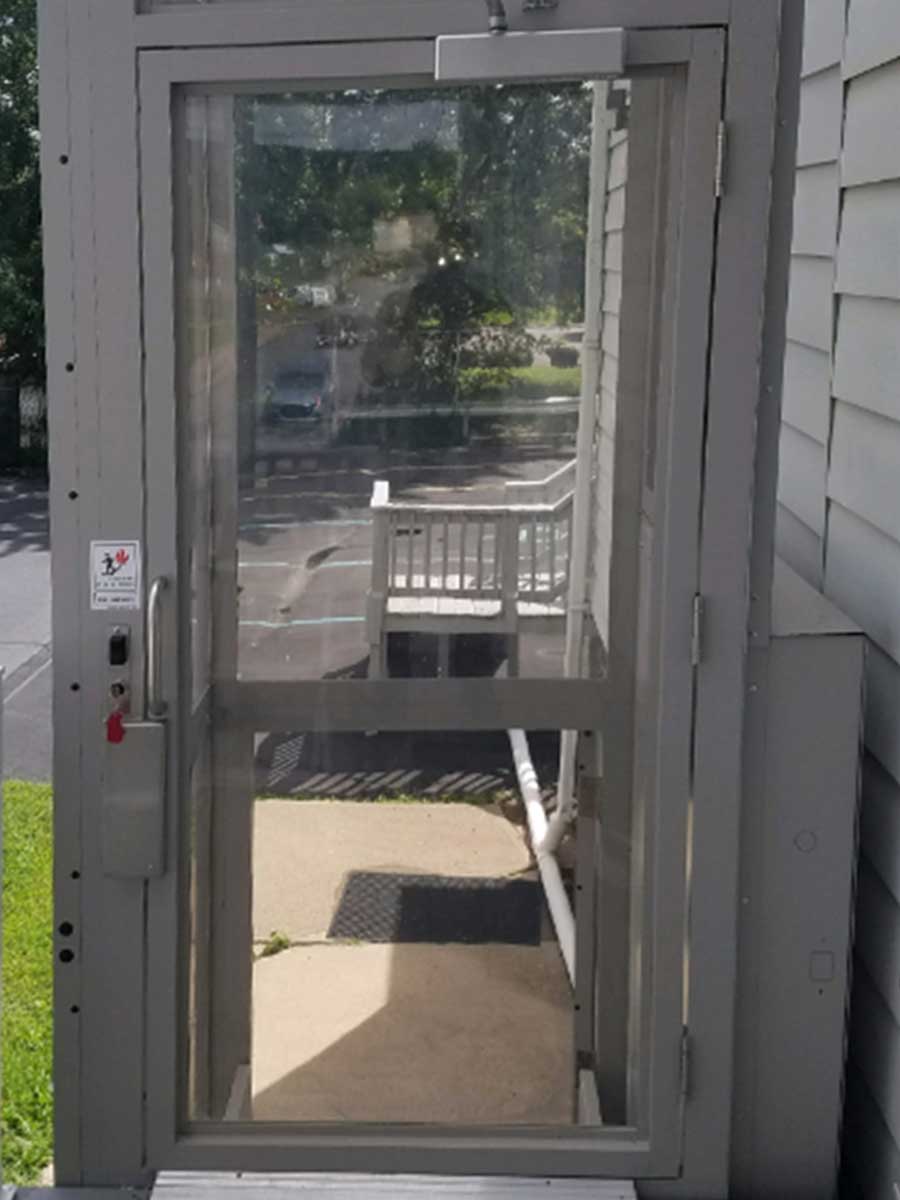

  • Door 80" H x 36" W Exterior Polycarbonate

    $1,540.00

    Hercules Door 36" x 80" Exterior Polycarbonate
  • Door 80" H x 42" W Interior

    $1,345.00

    Hercules Door 42" x 80" Interior
  • Door 80" H x 42" W Exterior

    $2,055.00

    Hercules Door 42" x 80" Exterior
  • Door 80" H x 42" W Fire Rated

    $1,759.00

    Hercules Door 42" x 80" Fire Rated
  • Door 80" H x 42" W Exterior Polycarbonate

    $2,055.00

    Hercules Door 42" x 80" Exterior Polycarbonite
  • No Gate or Door (For Gates/Doors Provided by Others)

    $0.00

    No Image

spacer

  • Open on Left

    $0.00

    No Image
  • Open on Right

    $0.00

    No Image

spacer

  • A Call/Send Control must be ordered for every Door or Gate Ordered

    $0.00

    No Image
  • Door 80" H x 36" W Interior

    $829.00

    Hercules Door 36" x 80" Interior
  • Door 80" H x 36" W Exterior

    $1,540.00

    Hercules Door 36" x 80" Exterior
  • Door 80" H x 36" W Fire Rated

    $1,244.00

    Hercules Door 36" x 80" Fire Rated
  • Door 80" H x 36" W Exterior Polycarbonate

    $1,540.00

    Hercules Door 36" x 80" Exterior Polycarbonate
  • Door 80" H x 42" W Interior

    $1,345.00

    Hercules Door 42" x 80" Interior
  • Door 80" H x 42" W Exterior

    $2,055.00

    Hercules Door 42" x 80" Exterior
  • Door 80" H x 42" W Fire Rated

    $1,759.00

    Hercules Door 42" x 80" Fire Rated
  • Door 80" H x 42" W Exterior Polycarbonate

    $2,055.00

    Hercules Door 42" x 80" Exterior Polycarbonite
  • Interlock is included with any Door Ordered

    $0.00

    Hercules Door 42" x 80" Exterior Polycarbonite
  • No Door (For Doors Provided by Others)

    $0.00

    No Image

spacer

  • Open on Left

    $0.00

    Open on Left
  • Open on Right

    $0.00

    Open on Right

spacer

  • A Call/Send Control must be ordered for every Door or Gate Ordered

    $0.00

    Open on Right
  • 34" or 36" W x 42" H Upper Landing Gate

    $706.00

    No Image
  • 38" to 42" W x 42 H Upper Landing Gate

    $1,052.00

    No Image
  • Door 80" H x 36" W Interior

    $829.00

    Hercules Door 36" x 80" Interior
  • Door 80" H x 36" W Exterior

    $1,540.00

    Hercules Door 36" x 80" Exterior
  • Door 80" H x 36" W Fire Rated

    $1,244.00

    Hercules Door 36" x 80" Fire Rated
  • Door 80" H x 36" W Exterior Polycarbonate

    $1,540.00

    Hercules Door 36" x 80" Exterior Polycarbonate
  • Door 80" H x 42" W Interior

    $1,345.00

    Hercules Door 42" x 80" Interior
  • Door 80" H x 42" W Exterior

    $2,055.00

    Hercules Door 42" x 80" Exterior
  • Door 80" H x 42" W Fire Rated

    $1,759.00

    Hercules Door 42" x 80" Fire Rated
  • Door 80" H x 42" W Exterior Polycarbonate

    $2,055.00

    Hercules Door 42" x 80" Exterior Polycarbonite
  • No Gate or Door (For Gates/Doors Provided by Others)

    $0.00

    No Image

spacer

  • If a gate is selected for Platform or Upper Landing, these options allow you to switch to a Polycarbonate panel

    $0.00

    No Image
  • Polycarbonate Panel in Platform Gate (must have selected gate above)

    $258.00

    No Image
  • Polycarbonate Panel in Upper Landing Gate (must have selected gate above)

    $258.00

    No Image

spacer

  • Interlock Only (For Gates/Doors Provided by Others)

    $282.00

    Hercules Interlock for Customer Provided Gate or Door

spacer

  • 40mm (1.57") Diameter Buttons on Call Station

    $115.00

    No Image
  • 60mm (2.36") Diameter Buttons on Call Station

    $115.00

    No Image
  • Anti-Tamper Commercial Buttons

    $142.00

    No Image

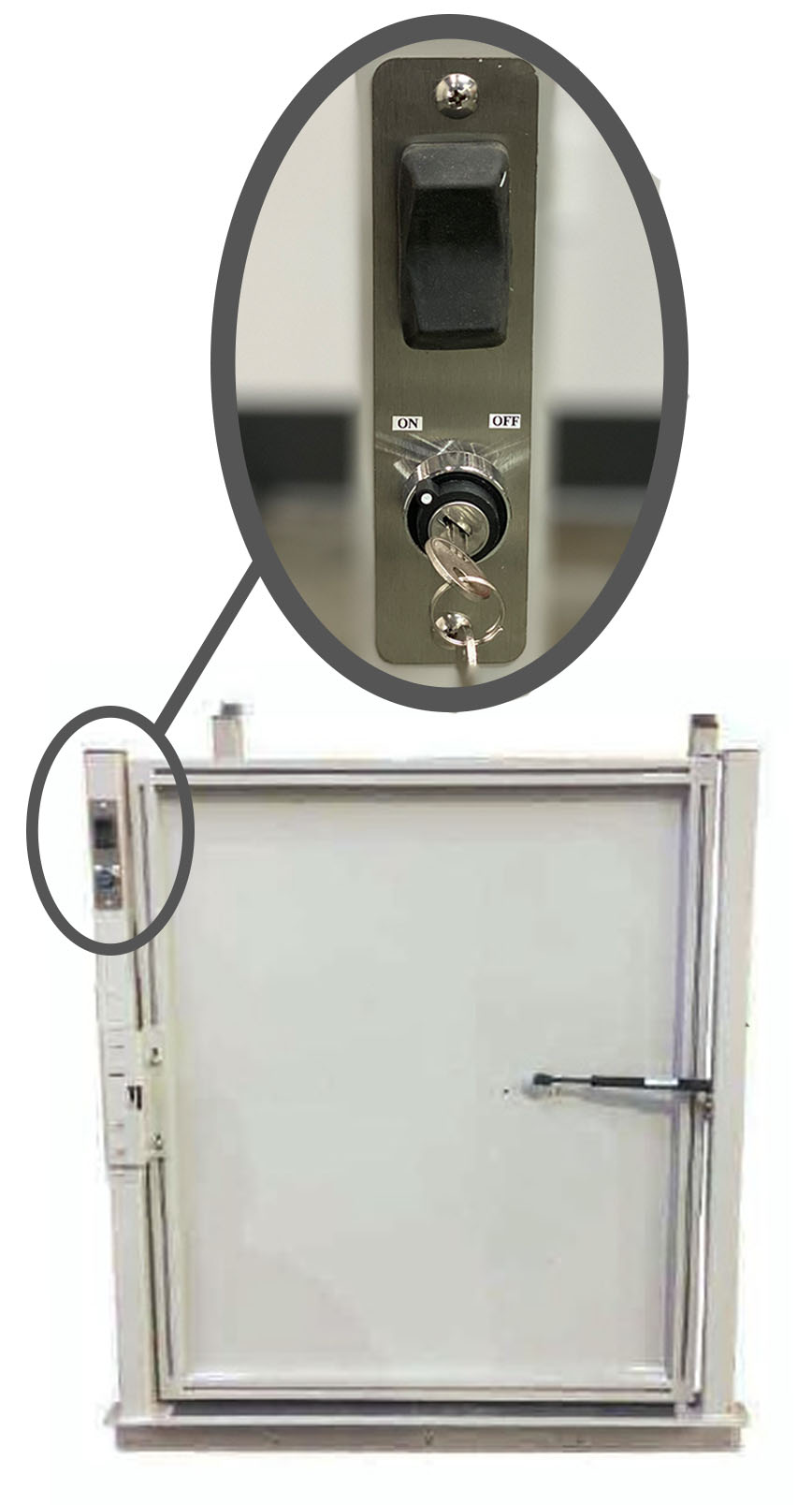

  • Keyed Call/Send Post - Lower Landing

    $232.00

    Hercules DC 750 Call/Send Post
  • Keyed Call/Send Post - Mid Landing

    $232.00

    Hercules DC 750 Call/Send Post
  • Keyed Call/Send Post - Upper Landing

    $232.00

    Hercules DC 750 Call/Send Post
  • Keyed Call/Send Flush Mount - Lower Landing

    $232.00

    Hercules DC 750 Flush Mount Call/Send
  • Keyed Call/Send Flush Mount - Mid Landing

    $232.00

    Hercules DC 750 Flush Mount Call/Send
  • Keyed Call/Send Flush Mount - Upper Landing

    $232.00

    Hercules DC 750 Flush Mount Call/Send
  • Keyed Call/Send Surface Mount - Lower Landing

    $232.00

    Hercules DC 750 Surface Mount Call/Send
  • Keyed Call/Send Surface Mount - Mid Landing

    $232.00

    Hercules DC 750 Surface Mount Call/Send
  • Keyed Call/Send Surface Mount - Upper Landing

    $232.00

    Hercules DC 750 Surface Mount Call/Send
  • Keyed Call/Send In Gate's Frame - Upper Landing Only

    $232.00

    Hercules DC 750 In Gate Frame Call/Send
  • Lighted Buttons for Call Station

    $95.00

    No Image
  • Call/Send Control must be ordered for every Door or Gate Ordered

    $0.00

    No Image

spacer

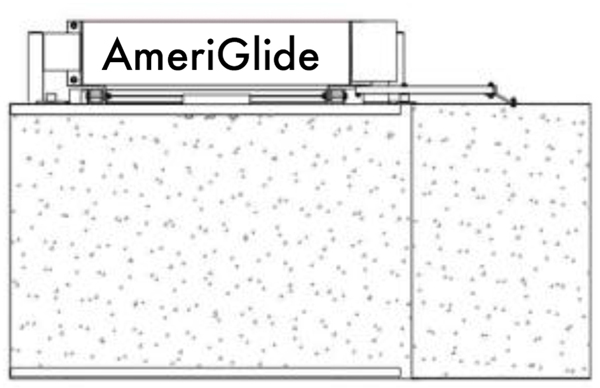

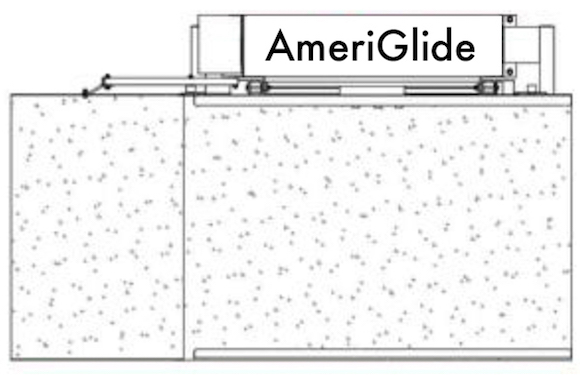

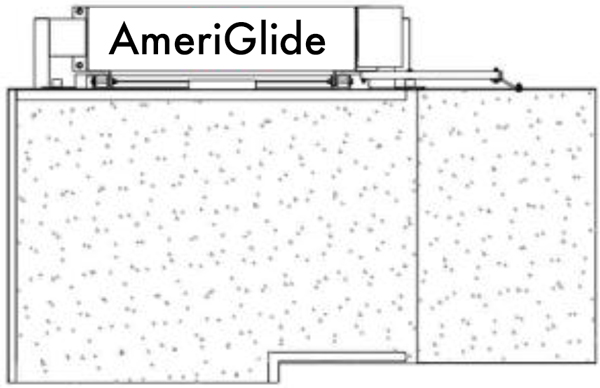

  • Auto Operator for Gate Qty.

    $860.00

    No Image

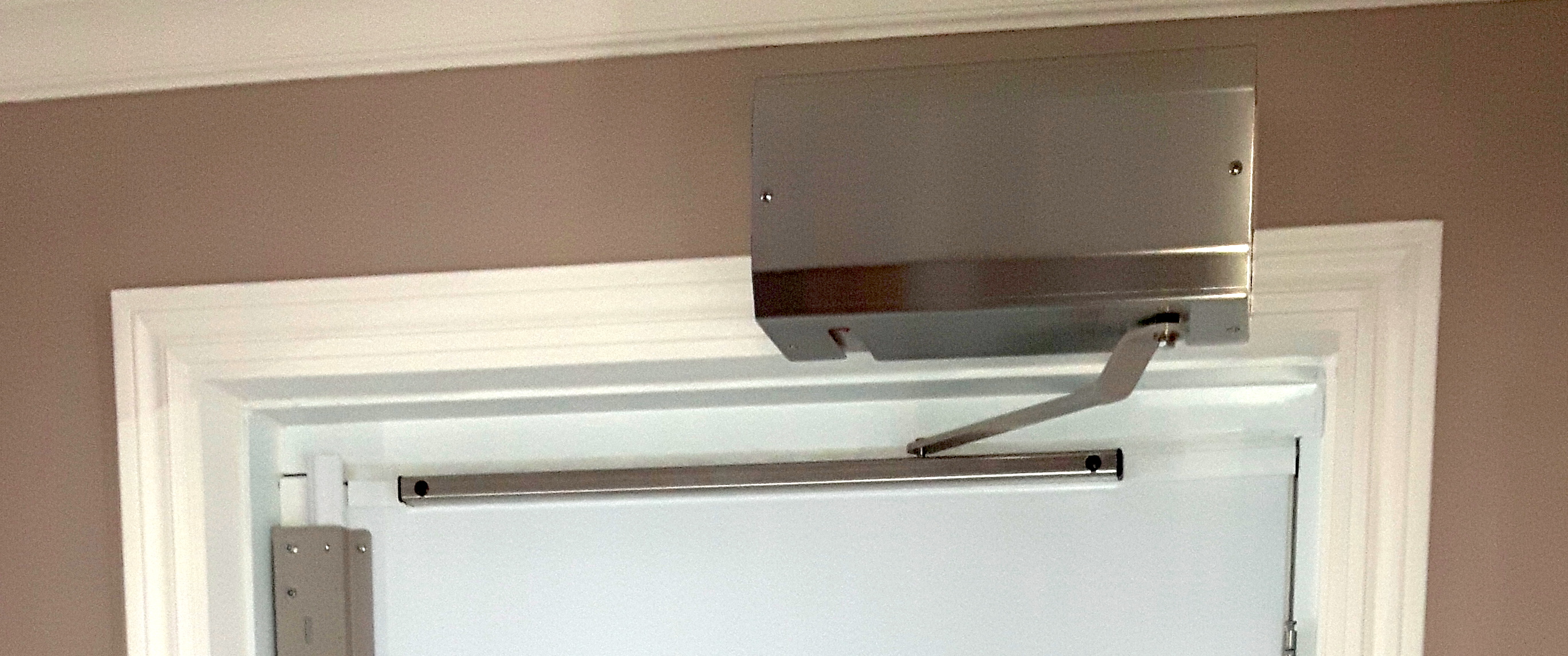

  • Auto Operator for Door Qty.

    $1,097.00

    Hercules DC 750 Auto Operator for Door (Residential & Commercial)
  • Wireless Remotes for Auto Operators (2x)

    $136.00

    No Image

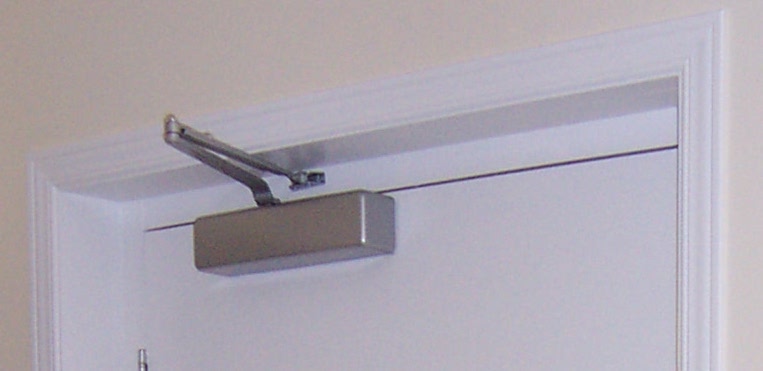

  • Gas Spring Loaded Door Closer (Required for Doors Without Auto Operator)

    $93.00

    Hercules DC 750 Gas-Spring Door Closer

spacer

  • Grab Bar

    $194.00

    No Image
  • Platform Lights

    $194.00

    No Image
  • Disconnect Switch

    $135.00

    No Image
  • Designer Gate

    $257.00

    No Image
  • Easy Access Lowering Mechanism

    $527.00

    No Image
  • Folding Seat

    $319.00

    No Image
  • Fixed Ramp for Bottom Landing

    $325.00

    No Image
  • Custom Sized Folding Ramp (less than 24")

    $273.00

    No Image
  • Additional Weather Protection Coating

    $515.00

    No Image
  • Front Panel Brushes (Travel Track Protection)

    $85.00

    No Image
  • GFI Outlet in Wing Wall

    $141.00

    No Image
  • 1000 lbs. Capacity

    $1,288.00

    No Image
  • Handsfree Phone

    $578.00

    No Image
  • All Wooden Crate

    $460.00

    No Image

spacer

  • Pick up at Local Freight Terminal

    $0.00

    No Image
  • Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site

    $0.00

    No Image
  • Site Shipping - Liftgate Delivery (not available for 98" and taller models)

    $199.00

    No Image
  • Site Shipping - Flatbed & Forklift Delivery (Available in Most Areas)(for 98" and taller models)

    $999.00

    No Image
  • Factory Pickup

    $0.00

    No Image

spacer

  • Alabama

    $0.00

    No Image
  • Alaska

    $0.00

    No Image
  • Arizona

    $0.00

    No Image
  • Arkansas

    $0.00

    No Image
  • California

    $0.00

    No Image
  • Colorado

    $0.00

    No Image
  • Connecticut

    $0.00

    No Image
  • Delaware

    $0.00

    No Image
  • District of Columbia

    $0.00

    No Image
  • Florida

    $0.00

    No Image
  • Georgia

    $0.00

    No Image
  • Hawaii

    $0.00

    No Image
  • Idaho

    $0.00

    No Image
  • Illinois

    $0.00

    No Image
  • Indiana

    $0.00

    No Image
  • Iowa

    $0.00

    No Image
  • Kansas

    $0.00

    No Image
  • Kentucky

    $0.00

    No Image
  • Louisiana

    $0.00

    No Image
  • Maine

    $0.00

    No Image
  • Maryland

    $0.00

    No Image
  • Massachusetts

    $0.00

    No Image
  • Michigan

    $0.00

    No Image
  • Minnesota

    $0.00

    No Image
  • Mississippi

    $0.00

    No Image
  • Missouri

    $0.00

    No Image
  • Montana

    $0.00

    No Image
  • Nebraska

    $0.00

    No Image
  • Nevada

    $0.00

    No Image
  • New Hampshire

    $0.00

    No Image
  • New Jersey

    $0.00

    No Image
  • New Mexico

    $0.00

    No Image
  • New York

    $0.00

    No Image
  • North Carolina

    $0.00

    No Image
  • North Dakota

    $0.00

    No Image
  • Ohio

    $0.00

    No Image
  • Oklahoma

    $0.00

    No Image
  • Oregon

    $0.00

    No Image
  • Pennsylvania

    $0.00

    No Image
  • Rhode Island

    $0.00

    No Image
  • South Carolina

    $0.00

    No Image
  • South Dakota

    $0.00

    No Image
  • Tennessee

    $0.00

    No Image
  • Texas

    $0.00

    No Image
  • Utah

    $0.00

    No Image
  • Vermont

    $0.00

    No Image
  • Virginia

    $0.00

    No Image
  • Washington

    $0.00

    No Image
  • West Virginia

    $0.00

    No Image
  • Wisconsin

    $0.00

    No Image
  • Wyoming

    $0.00

    No Image

spacer

spacer
Customer Reviews
This product currently has no reviews. Would you like to leave one?



© 2008-2019 All Rights Reserved
