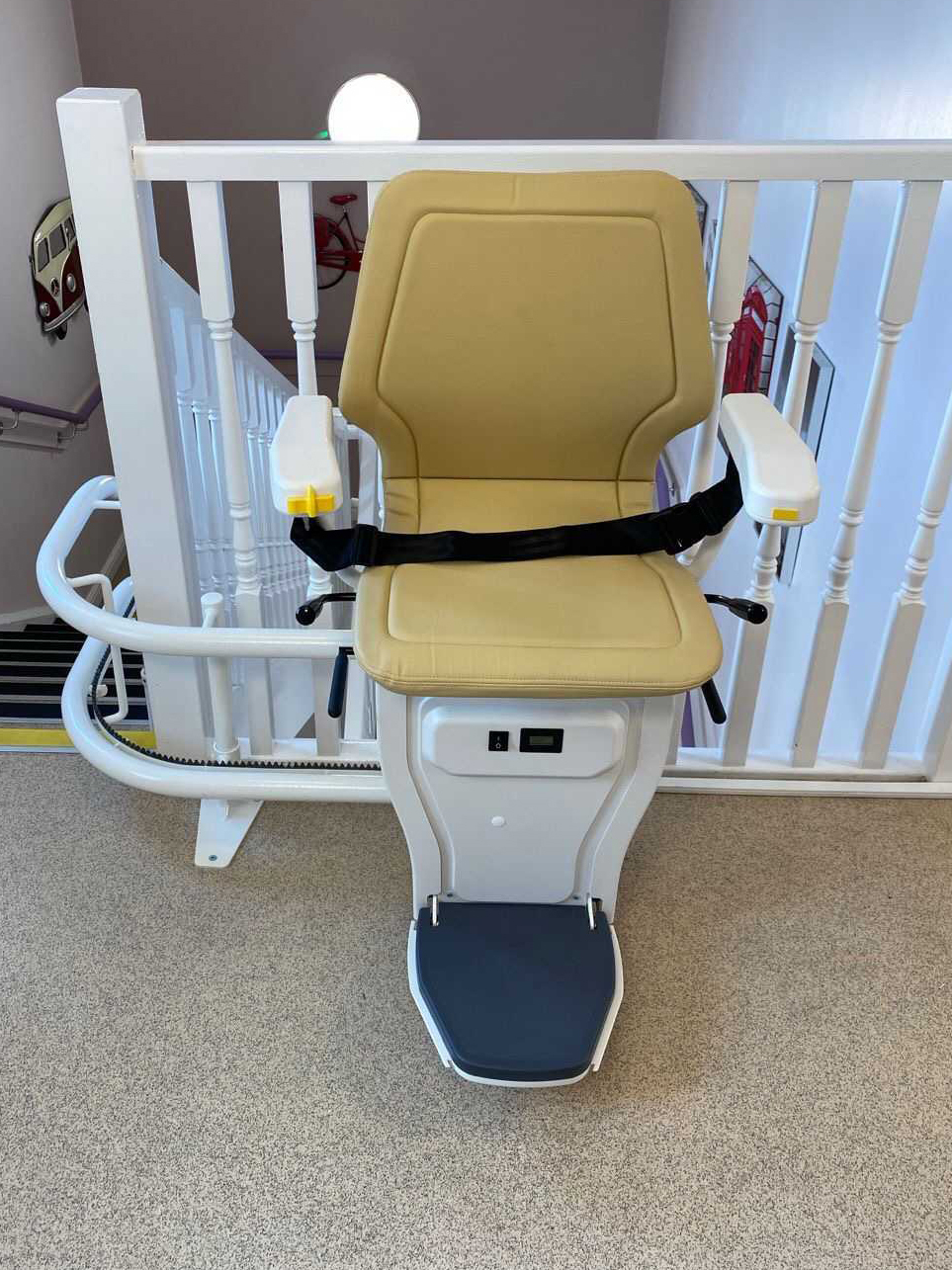

The seat and footrest are easily folded, giving more space when the Infinity is not in use.

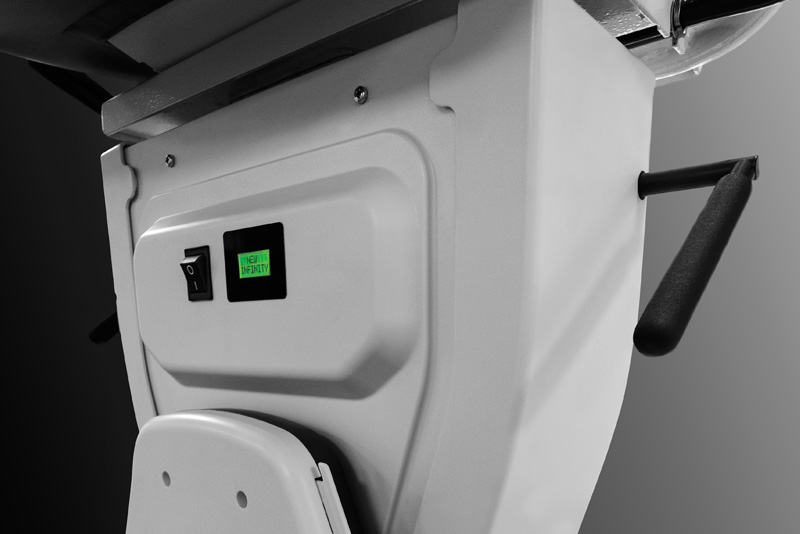

With the digital diagnostic display as standard, the status of the Infinity stairlift is easy to follow with clear, backlit text.
This stair lift must be installed by trained installers. It is not user installable.
Additional Images
Click on an image to enlarge.
- Drive Type: Rack and Pinion
- Uses Batteries: Yes
- Standard Capacity: 275 lb
- Seat Width: 23.9"
- Seat Depth: 15.2"
- Swivel Seat: Yes
- Swivel Seat Rotation: 80 Degrees
- Seat Folds Up: Yes
- Arms Fold Up: Yes
- Constant Pressure Controls: Yes
- Footrest Safety Sensor: No
- Unit Footprint, In Use: 24.5"
- Unit Footprint, Parked: 16"
- Warranty: 2 Years
- Digital Diagnostics Display: Yes
- Key Lock: Yes
Each curved stair lift must be custom manufactured to suit the unique requirements of the site. The unit is manufactured to the exact dimensions of the site application as determined by the digital survey and no two applications are alike. Lifts go into factory production immediately upon submission of the order to the factory which is after customer signs off on the CAD drawing. Accordingly, AmeriGlide has a substantial investment in resources and labor and as such we have a 25% cancellation fee for any order cancelled after the measurement survey but prior to submission for production, 50% once the lift is in production. Once a custom stair lift order has been shipped it cannot be canceled or returned. The shipment cannot be refused. No refund will be made for orders of this status.
- Weight Capacity
- Seat Color
- Control Location
- Optional Seat Features
- Additional Track and Bends
- Top Landing Options
- Bottom Landing Options
- Additional Rail Features
- Installation
- Installation Location Question
- Installation Special Cases
- Standard (275 lbs capacity)
$0.00
- Heavy Duty (350 lbs capacity)
$1,395.00
- Beige (Standard)
$0.00
- Red
$232.00
- Blue
$232.00
- Grey
$232.00
- Brown
$232.00
- We can put the controls on either arm to suit you.
$0.00
- Controls on Left Arm
$0.00
- Controls on Right Arm
$0.00
- Wireless Radio Call/Send Remote
$0.00
- Retractable Seatbelt
$0.00
- Powered Swivel
$683.00
- Extra Parking Call/Send Remote
$206.00
- Additional Standard Rail per yard (Unit Includes 16.4')
$286.00
- Additional Heavy Duty Rail per yard (Unit Includes 16.4')
$452.00
- Base Unit Includes One 90 degree Bend
$0.00
- Additional 90 Degree Bend (each)
$738.00
- Additional 180 Degree Bend (each)
$1,092.00
- Additional Special Bend (each)
$1,367.00
- Standard Top Landing
$0.00
- Top Over-Run Landing
$341.00
- Standard Bottom Landing
$0.00
- Bottom Over-Run Landing
$341.00
- Drop Nose
$420.00
- Intermediate Landing
$506.00
- Additional Charge Point
$137.50
- Brown Color on Rail (RAL8011)
$341.00
- Leg Covers
$7.10
- Wall Brackets
$40.20
- Measurement and Installation
$1,275.00
- Stair Lift Removal Service
$499.00
- License / Permit / Inspection
$425.00
- Permit (Required in Kentucky for EACH item being installed)
$87.50
- CAD Service - A $2500 CAD Cost Will be Charged if the Stairlift Order is Cancelled
$0.00
- Is There a Stair Lift Currently Installed Where this Curved Stair Lift Will Be Going?
$0.00
- Installation On Concrete, Steel, or Tile Stairs is available.
$460.00
- Most sprial staircases will not accept a curved lift if the staircase is made with a single center pole.
$0.00
