Crest HD Stair Lift

Crest HD Stair Lift
Need Assistance? Call 1 (877) 852-3215.
Quick Ship Product
Product Review
(0)
(0)

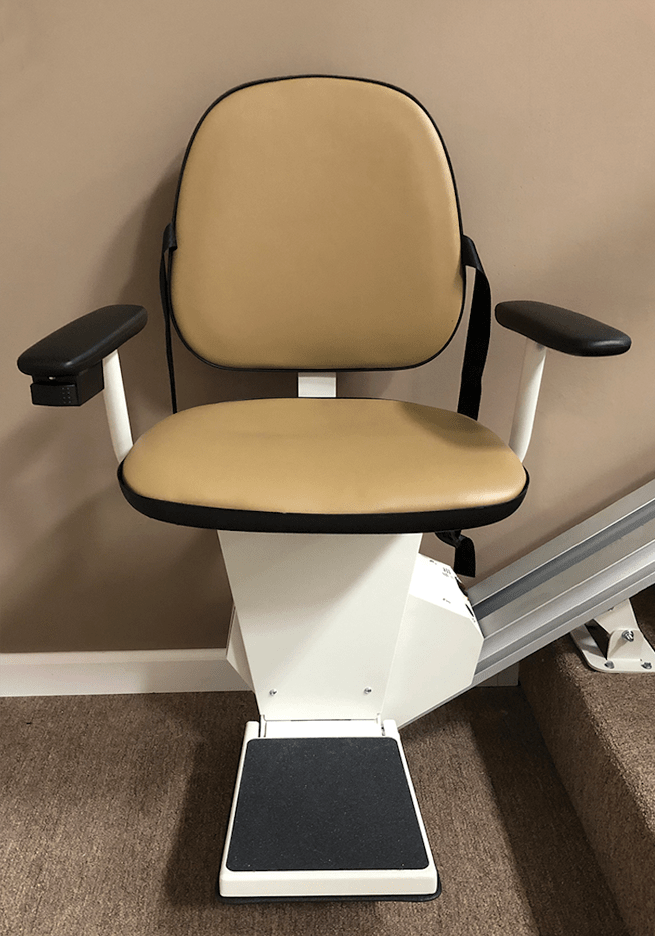

Crest HD Stair Lift
Click to enlarge

  • 2 years on batteries
    Lifetime on all parts for the original purchaser
    Labor and Shipping of Warranty Parts are not covered in the warranty.

$2,095.00

Plus Shipping

Add to Cart

The Crest HD Stair Lift comes to you at a low price but feature rich.
  • ETL listed A17.5 / B44 - A18.1
  • Rack and pinion drive
  • Interior gear rack
  • 25 to 45 degree angle applications
  • Quick adjustment limit cams
  • Folds to 12.5" from the wall
  • Wireless seat control
  • Wireless remote controls for upper and lower landings
  • 14'5" track standard, additional sections available
  • Chassis mounted auxiliary control switch
  • Obstruction audio beep notification
  • Battery operated system
  • Low profile stair-hugger track and bracket design - 2-1/2" track rest on stairs
  • Constant pressure controls
  • 3" to 6" horizontal extension at top landing (depending on angle)
  • 90 degree swivel seat assembly at top landing
  • ANODIZED aluminum rail
  • Black, Gray, Beige or Brown upholstery
  • Seat belt
  • Folding arm rest
  • 350 lbs capacity
  • Overspeed governor
  • Proudly made in the USA!

Additional Images

Click on an image to enlarge.

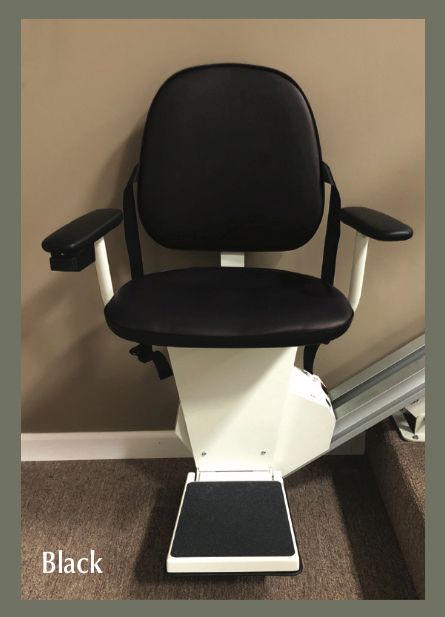

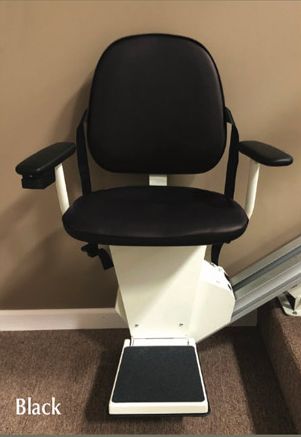

  • Black

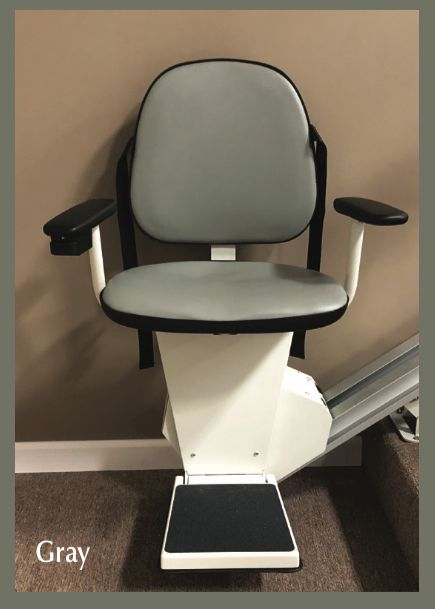

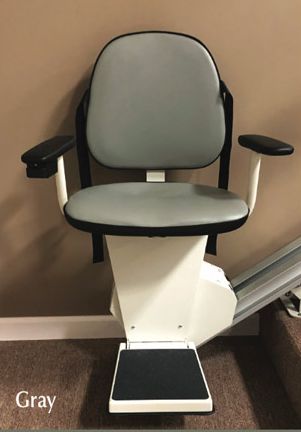

  • Gray
  • Brown

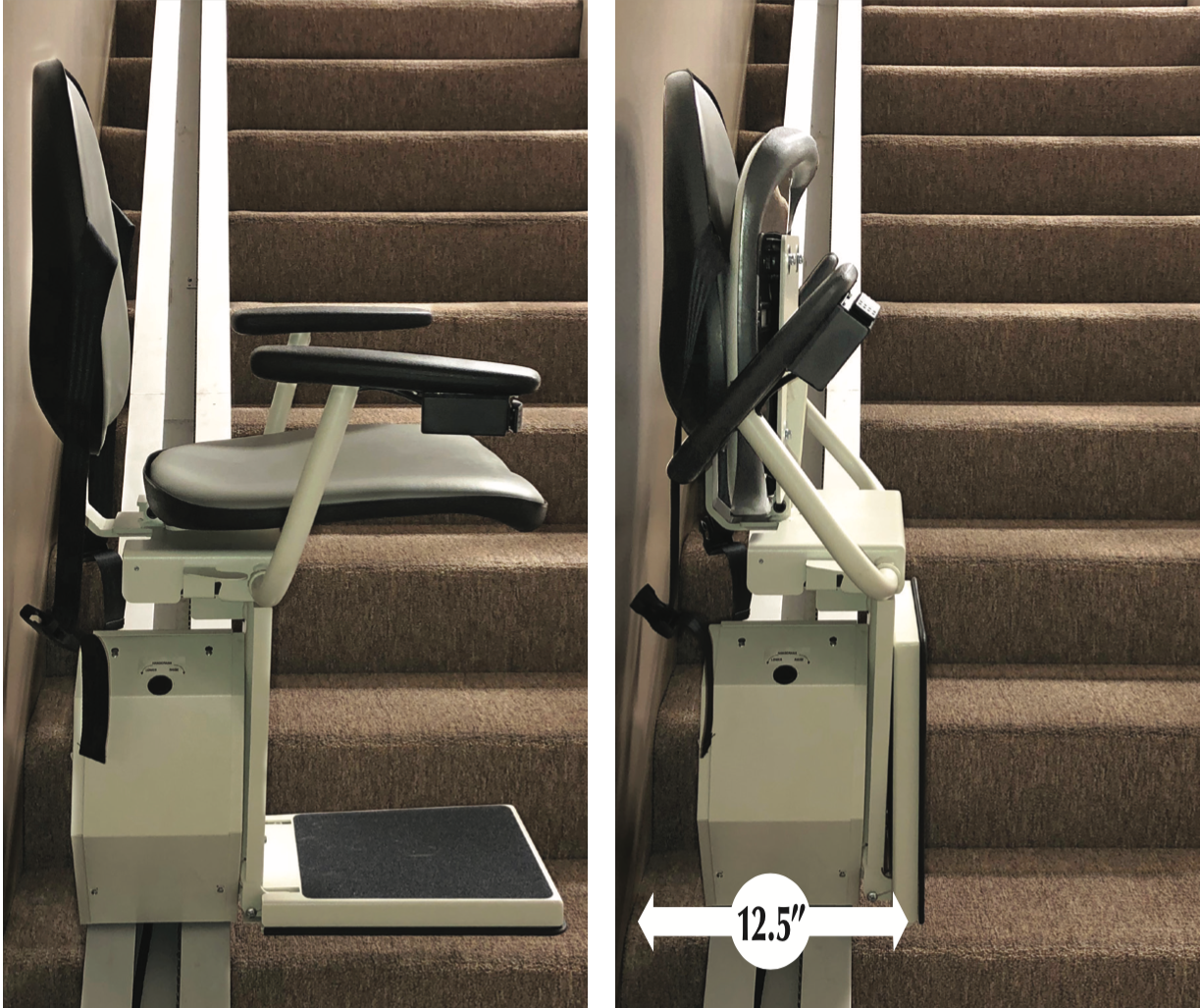

  • Showing Operational and Folded
spacer
spacer
  • Drive TypeRack and Pinion
  • Uses BatteriesYes
  • Standard Capacity350 lb
  • Standard Track Length (up to)14.4'
  • Swivel SeatYes
  • Swivel Seat Rotation90 Degrees at top landing
  • Seat Folds UpYes
  • Arms Fold UpYes
  • Constant Pressure ControlsYes
  • Footrest Safety SensorNo
  • Warranty2 years on batteries / Lifetime on all parts for the original purchaser
  • Track Width6.5"
  • Call Stations Included2
  • Rail Angle, Min25°
  • Rail Angle, Max45°
  • Digital Diagnostics DisplayNo
  • Key LockNo
spacer
Stair Lift Overview
Available Options
Click on the categories in the left column to view the options available.
  • Stair Lift Orientation
  • Upholstery Color
  • Seat Width
  • Chassis / Track Custom Color
  • Track Length
  • Stair Lift Measurements According to Measurement Guide
  • Options
  • Installation
  • Installation Special Cases
  • Shipping
  • Right

    $0.00

    No Image
  • Left

    $0.00

    No Image

spacer

  • Black

    $0.00

    Black
  • Brown

    $0.00

    Brown

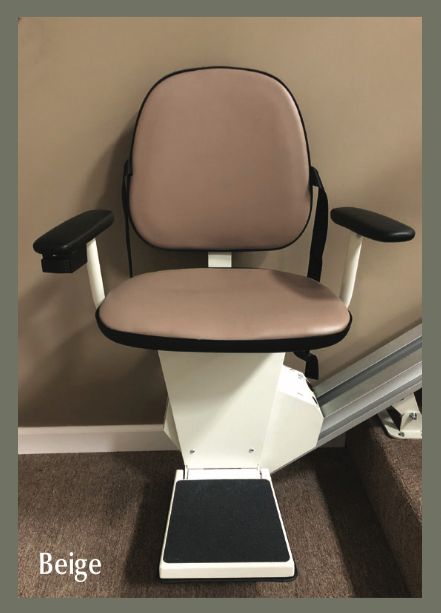

  • Beige

    $0.00

    Beige
  • Gray

    $0.00

    Gray

spacer

  • Standard

    $0.00

    No Image
  • Arms Extended 2" on Either Side

    $230.00

    No Image

spacer

  • Chassis Custom Color

    $310.00

    No Image
  • RAL Color for Chassis Powder Coat

    $0.00

    No Image
  • Track Custom Color

    $462.00

    No Image
  • RAL Color for Track Powder Coat

    $0.00

    No Image

spacer

  • Standard 14'5" Of Track

    $0.00

    No Image
  • Additional Track (Per Foot)

    $55.00

    No Image

spacer

  • Step 1 - Total Staircase Length

    $0.00

    No Image
  • Step 2 - Top Landing to Bottom Step

    $0.00

    No Image
  • Step 3 - Stair Width

    $0.00

    No Image
  • Step 4 - Available Space at Bottom

    $0.00

    No Image
  • Step 5 - Height of One Step

    $0.00

    No Image
  • Step 6 - Length of One Tread

    $0.00

    No Image
  • Step 7 - One Step Front Edge to Front Edge

    $0.00

    No Image
  • Step 8 - Available Space at Top

    $0.00

    No Image

spacer

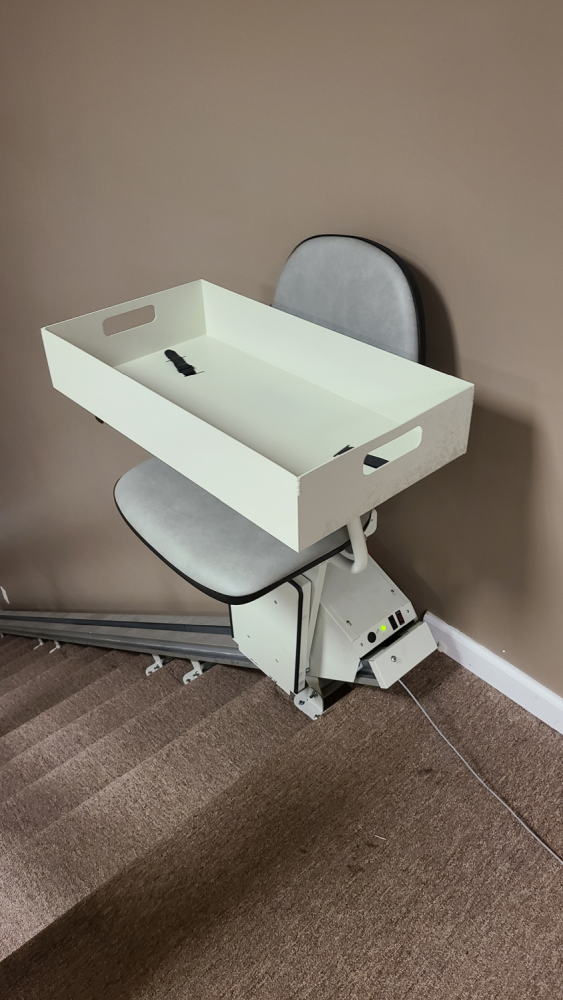

  • Cargo Tray Add-On

    $230.00

    Cargo Tray Add-On
  • Tall Brackets

    $39.00

    No Image
  • Key Switch

    $77.00

    No Image

spacer

  • Self-Install

    $0.00

    No Image
  • Nationwide Installation Service

    $599.00

    No Image
  • Double Stair Lift Installation Service - Per Stair Lift

    $437.50

    No Image
  • Nationwide Measurement and Installation

    $749.00

    No Image
  • Stair Lift Removal and Disposal

    $499.00

    No Image

spacer

  • Installation In Remote or Limited Access Location

    $285.00

    No Image
  • Installation On Concrete, Steel, or Tile Stairs

    $300.00

    No Image

spacer

  • Additional Shipping Charge for Unit with More Than 15' of Track

    $100.00

    No Image
  • Shipping to Alaska or Hawaii (Call for Price)

    $0.00

    No Image

spacer

spacer
