Crest HD - Stair Lift

Crest HD - Stair Lift
Need Assistance? Call 1 (877) 852-3215.
Quick Ship Product
Product Review
(0)
(0)

Crest HD - Stair Lift
Click to enlarge

  • 5 years on the motor gear box
    2 years on components

$2,099.00

Plus Shipping

Add to Cart

The Crest HD Stair Lift delivers exceptional versatility, heavy-duty performance, and advanced safety features. With a 350 lb. weight capacity, its universal design supports both left and right-side installation, while adjustable armrest width, seat height, and toggle control offer customizable comfort. A 2-position swivel seat ensures safe and easy transfers.

Functionality is enhanced with extra-long charging stations and 9Ah batteries, capable of lasting up to 20 days in power-saving sleep mode during outages. Maintenance is streamlined with a battery test point, diagnostic display, and easy-access service panels.

Robust safety features include:
  • 5 directional safety sensors
  • Retractable seat belt
  • Armrest and seat position sensors
  • Over-speed governor
  • Electro-mechanical brake system
  • Key switch for controlled access
An optional automatic hinged rail ensures safe clearance at the bottom of the stairs, making the Crest HD an ideal solution for both performance and peace of mind.

Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.

Additional Images

Click on an image to enlarge.

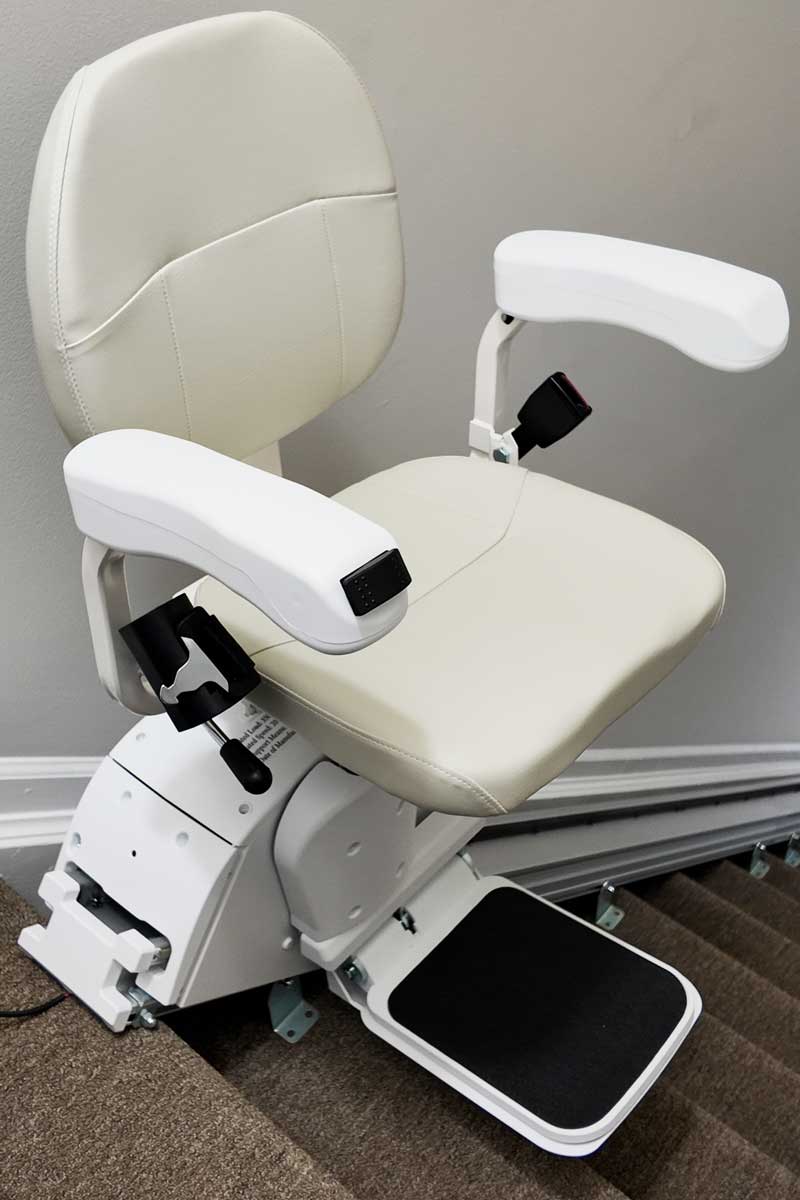

  • Angled View at the Bottom of the Stairs

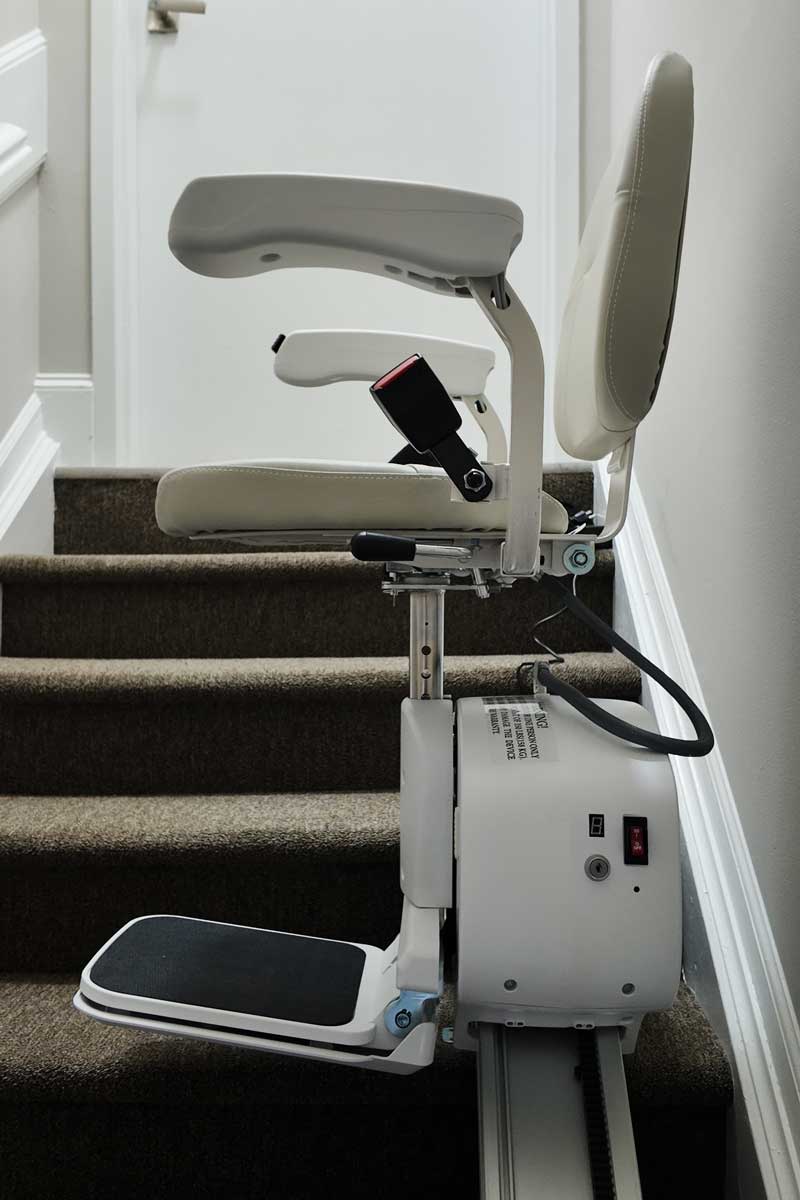

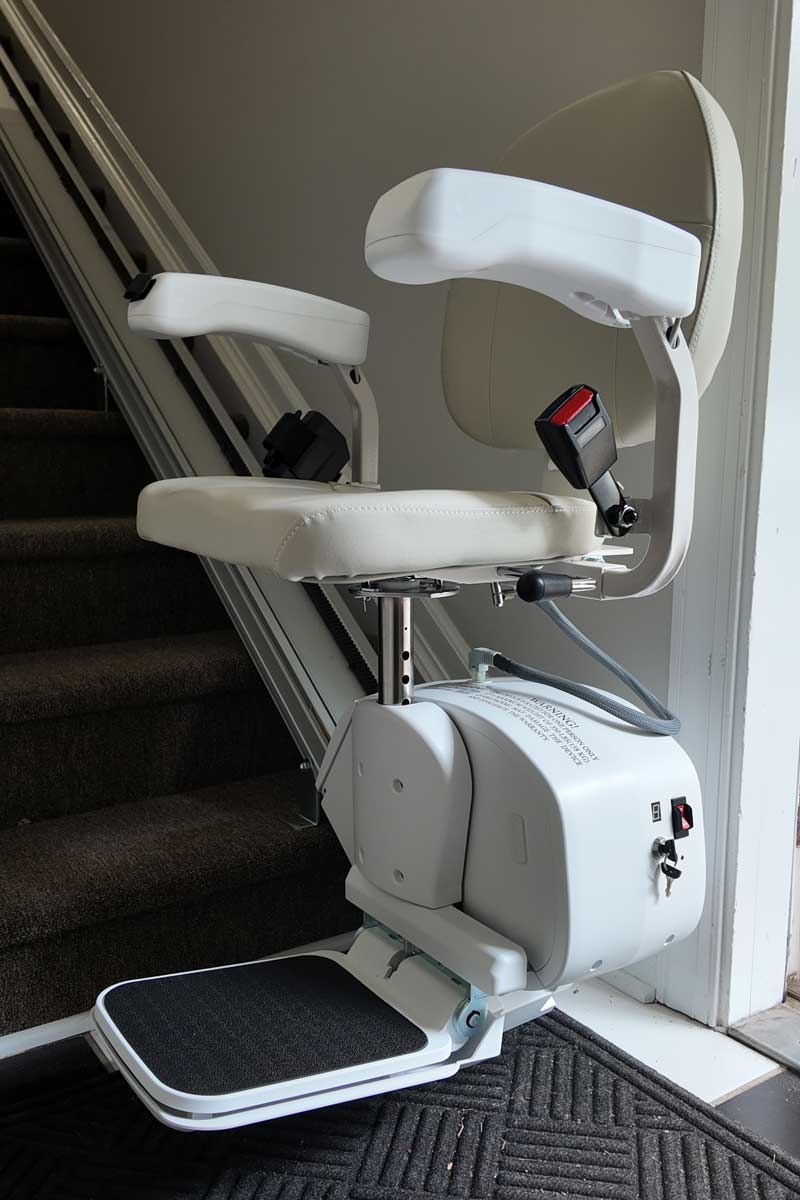

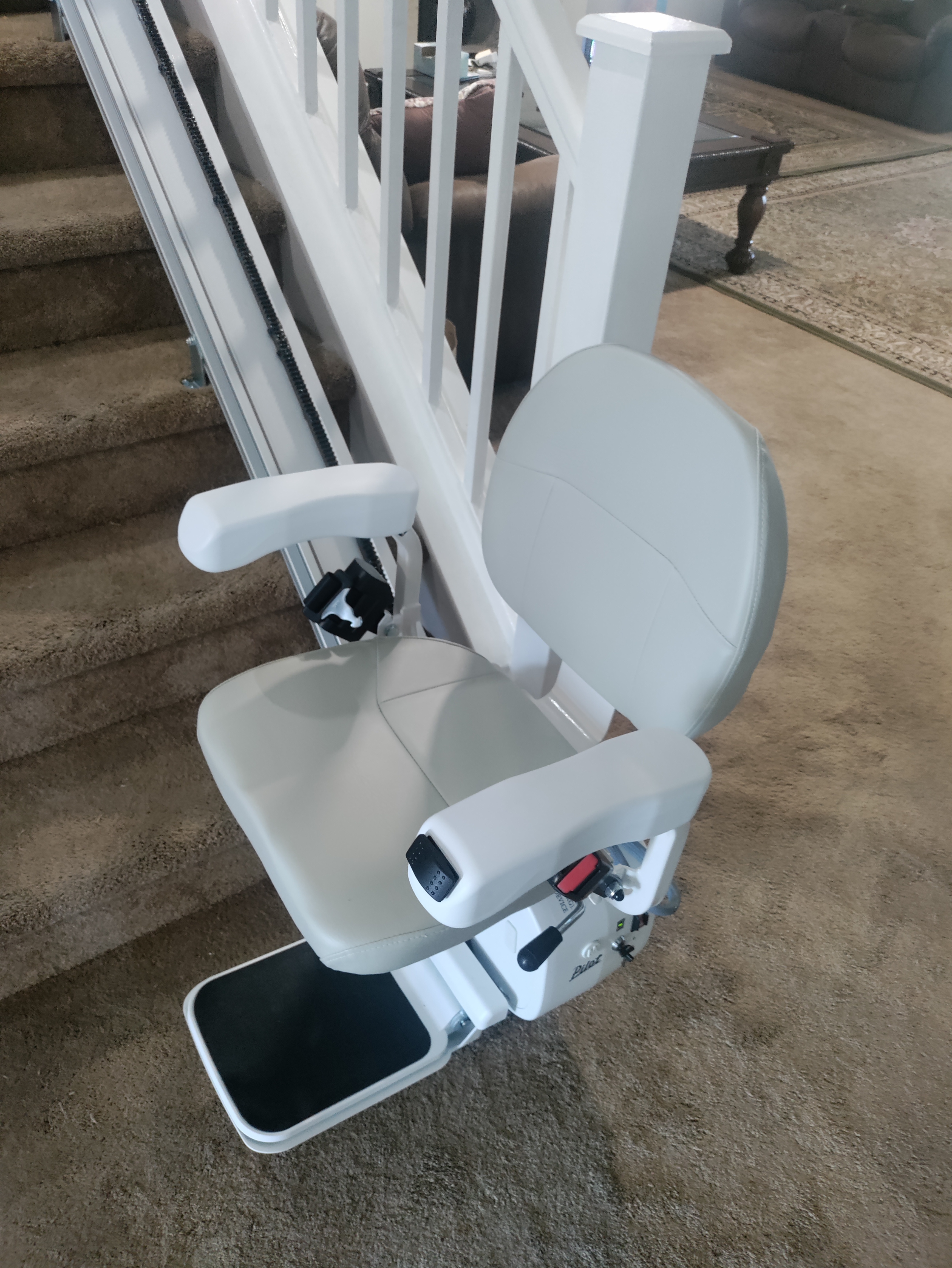

  • Shown at the Bottom of the Stairs
  • Heading up the Stairs

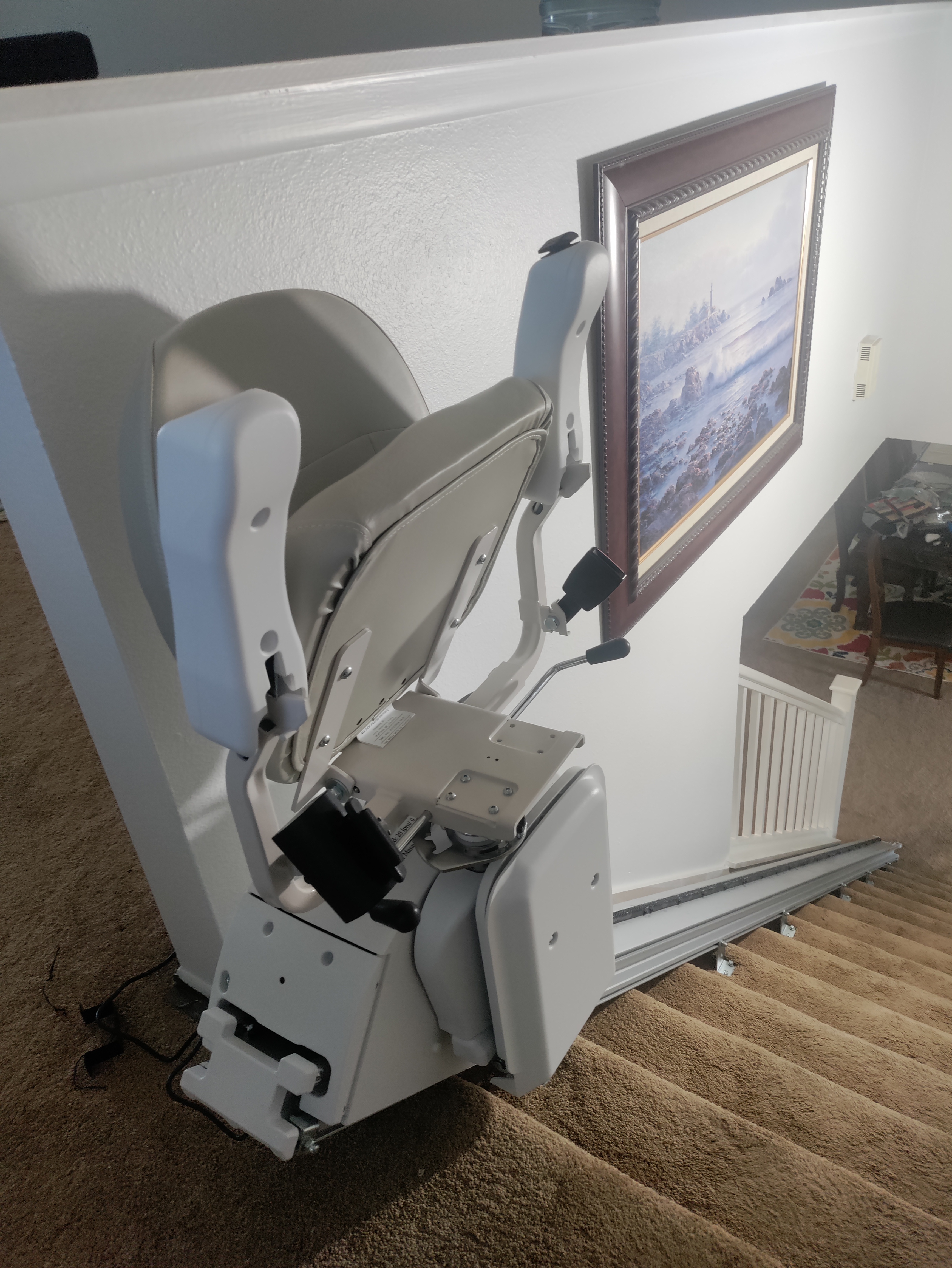

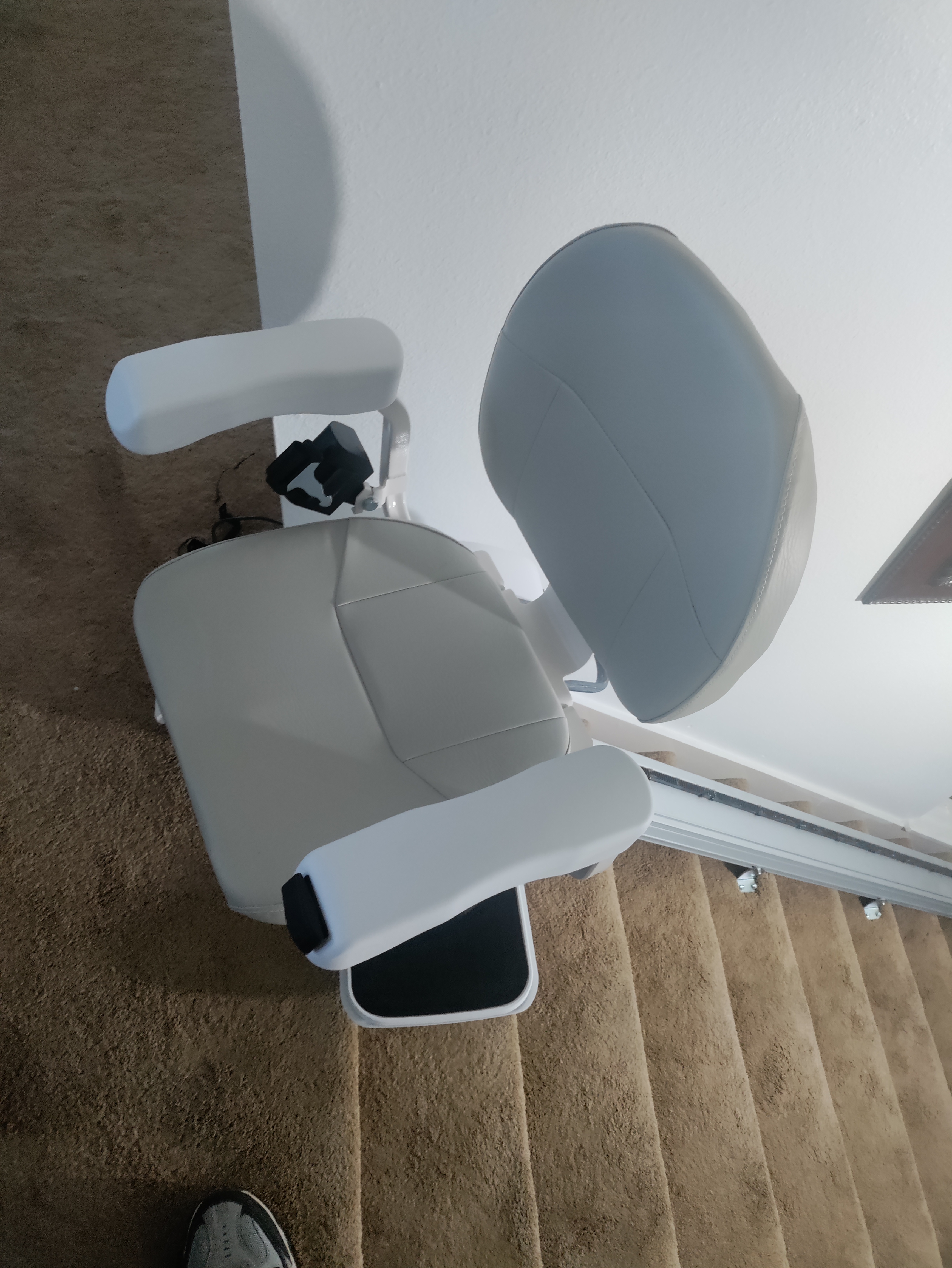

  • Shown at the Top of the Stairs

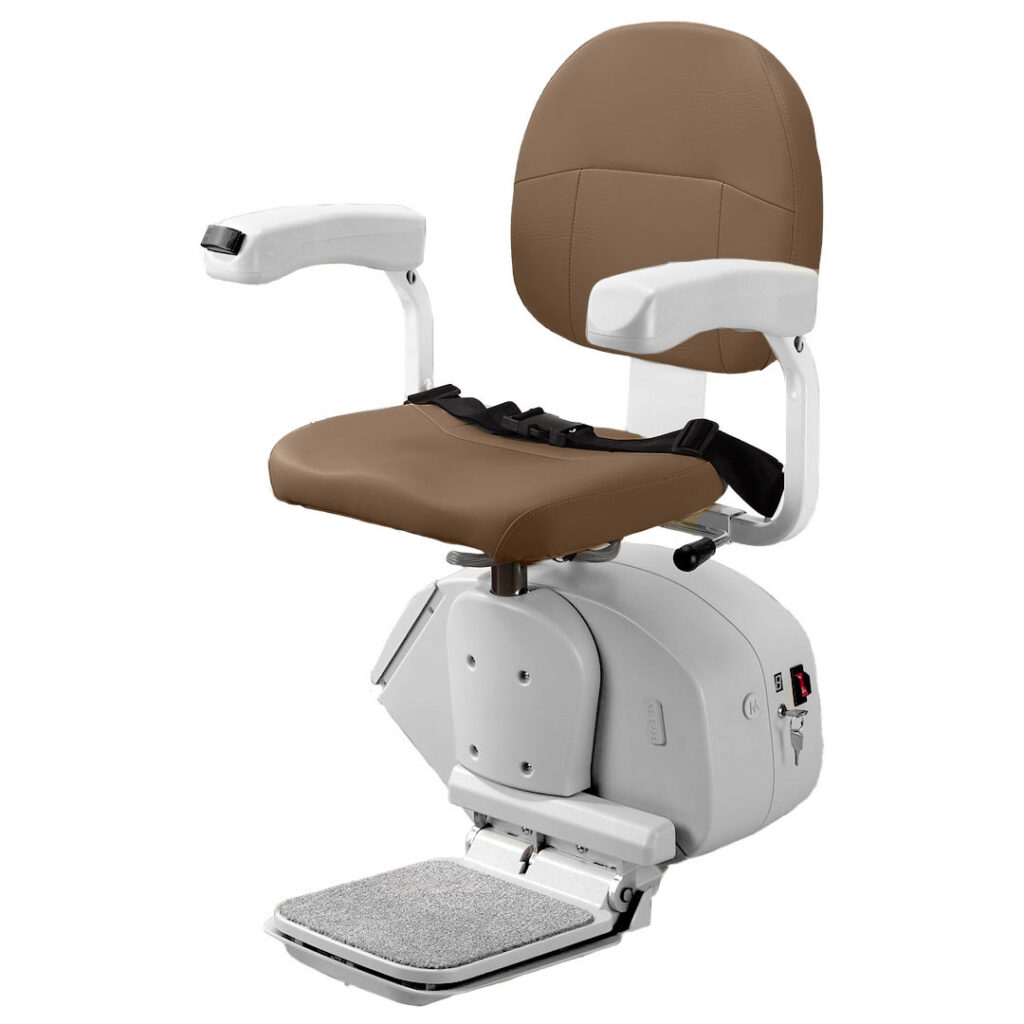

  • Shown in Light Brown
spacer
spacer
  • Drive TypeRack and Pinion
  • Uses BatteriesYes
  • Standard Capacity350 lb
  • Standard Track Length (up to)16'
  • Maximum Track Length (up to)32'
  • Seat Width16"
  • Seat Depth16.36"
  • Swivel SeatYes
  • Swivel Seat Rotation90 Degrees at top landing
  • Seat Folds UpYes
  • Arms Fold UpYes
  • Constant Pressure ControlsYes
  • Footrest Safety SensorYes
  • Unit Footprint, In Use23"
  • Unit Footprint, Parked13"
  • Call Stations Included2 Wireless
  • Seat Width, Max20"
  • Rail Angle, Min25°
  • Rail Angle, Max55°
  • Digital Diagnostics DisplayYes
  • Key LockYes
spacer
Stair Lift Overview
Available Options
Click on the categories in the left column to view the options available.
  • Dealer Order Code References
  • Stair Lift Orientation (Looking Up the Stairs)
  • Upholstery Color
  • Track Length
  • Stair Lift Measurements According to Measurement Guide
  • Options
  • Installation
  • Installation Permit
  • Installation Special Cases
  • Shipping
  • Right

    $0.00

  • Left

    $0.00

spacer

  • Beige

    $0.00

    Beige
  • Light Brown

    $0.00

    Light Brown
  • Dark Brown

    $0.00

    Dark Brown
  • Red

    $0.00

    Red

spacer

  • Standard 16' Of Track

    $0.00

  • Additional 8' Section of Track

    $384.00

spacer

  • Step 1 - Total Staircase Length

    $0.00

  • Step 2 - Top Landing to Bottom Step

    $0.00

  • Step 3 - Stair Width

    $0.00

  • Step 4 - Available Space at Bottom

    $0.00

  • Step 5 - Height of One Step

    $0.00

  • Step 6 - Length of One Tread

    $0.00

  • Step 7 - One Step Front Edge to Front Edge

    $0.00

  • Step 8 - Available Space at Top

    $0.00

spacer

  • Hinge Rail

    $834.00

    Hinge Rail
  • 6" Extended Indoor Brackets (each)

    $9.00

  • 8' Charging Cable Extension

    $15.00

  • Extended Footplate Kit - 2"

    $167.00

  • Extended Seat Post Kit - 2"

    $42.00

spacer

  • Self-Install

    $0.00

  • Nationwide Installation Service

    $599.00

  • Double Stair Lift Installation Service - Per Stair Lift

    $437.50

  • Nationwide Measurement and Installation

    $749.00

spacer

  • Installation In Remote or Limited Access Location

    $345.00

  • Installation On Concrete, Steel, or Tile Stairs

    $300.00

  • Additional Charge for Installation in the States of: New York, and Massachusetts

    $150.00

  • Existing Stair Lift Removal

    $499.00

spacer

  • Additional Shipping Charge for Unit with More Than 16' of Track

    $154.00

  • Shipping to Alaska or Hawaii (Call for Price)

    $0.00

spacer
