Harmar Pinnacle Stair Lift HD

Harmar Pinnacle Stair Lift HD
Need Assistance? Call 1 (877) 852-3215.
Product Review
(0)
(0)

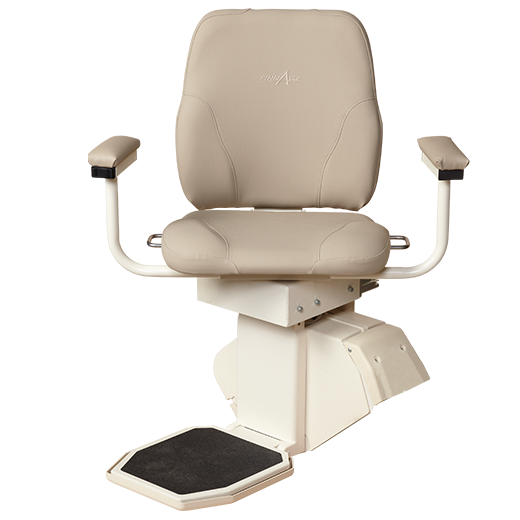

Harmar Pinnacle Stair Lift HD
Click to enlarge

$5,995.00

Plus Shipping

Add to Cart

The Pinnacle Heavy Duty Stair Lift offers a high-backed, contoured 24" wide seat which ensures a comfortable and secure ride. The sturdy, stationary armrests and reinforced footrest add stability for safer transfers. It slides out from wall as it pivots at top landing. As with all Pinnacle stair lifts, the HD model is engineered to the highest industry standards and designed for optimal comfort, convenience and aesthetics. Extending the many benefits of the Pinnacle’s patented Worm Drive, this stair lift features a premium ride, little to no maintenance, comfortable seating, and ease of access with a 85 degree swivel - and, with extraordinary lifting capacity.
spacer
  • Drive TypeHelical Worm Drive
  • Uses BatteriesYes
  • Standard Capacity600 lb
  • Standard Track Length (up to)15.5'
  • Maximum Track Length (up to)40'
  • Seat Width24"
  • Seat Depth16"
  • Swivel SeatYes
  • Seat Folds UpYes
  • Arms Fold UpNo
  • Constant Pressure ControlsYes
  • Footrest Safety SensorYes
  • Warranty3-Year on Components, 10-Year on Rack , 1-Year on Batteries
  • Call Stations Included2 Wireless
  • Rail Angle, Min32°
  • Rail Angle, Max52°
  • Digital Diagnostics DisplayNo
  • Key LockYes
spacer
Stair Lift Overview
Available Options
Click on the categories in the left column to view the options available.
  • Track Lengths Selection: 15' (180") is Standard *
  • Additional Track (Maximum 70' Including the 15' Standard Track)
  • Additional Brackets (comes with standard)
  • Options
  • Call Stations
  • Orientation (looking UP the staircase)
  • Installation
  • Installation Special Cases
  • Measurements
  • * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.

    $0.00

    option pic
  • 15' (180") of Track

    $0.00

    No Image
  • Length in inches if Shorter than 180" (allow +7" for entry/exit)

    $0.00

    No Image

spacer

  • Up to 3' of Additional Track

    $179.00

    No Image
  • Up to 5' of Additional Track

    $279.00

    No Image
  • Up to 7'9" (93") of Additional Track

    $422.00

    No Image

spacer

  • Standard Brackets

    $22.00

    No Image
  • Tall Brackets

    $22.00

    No Image

spacer

  • Seat Belt

    $0.00

    No Image
  • Track Cut to Custom Length (Required for any track cut)

    $108.00

    No Image
  • Key Lock on Chasis

    $122.00

    No Image

spacer

  • Top & Bottom Call-Send Stations

    $0.00

    No Image

spacer

  • The stair lift will be on the left

    $0.00

    No Image
  • The stair lift will be on the right

    $0.00

    No Image

spacer

  • NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout

    $0.00

    No Image
  • Self Installation

    $0.00

    No Image
  • Nationwide Installation

    $575.00

    No Image
  • Nationwide Installation and Measurement Service

    $725.00

    No Image
  • Double Stair Lift Installation Service - Per Stair Lift

    $437.50

    No Image
  • Stair Lift Removal and Disposal

    $460.00

    No Image

spacer

  • Installation On Concrete, Steel, or Tile Stairs

    $300.00

    No Image
  • Installation In Remote or Limited Access Location

    $285.00

    No Image

spacer

  • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.

    $0.00

    No Image
  • 1. Overall length

    $0.00

    No Image
  • 2. Top stair to bottom stair

    $0.00

    No Image
  • 3. Staircase width

    $0.00

    No Image
  • 4. Bottom clearance

    $0.00

    No Image
  • 5. Rise of one step

    $0.00

    No Image
  • 6. Tread of one step

    $0.00

    No Image
  • 7. Diagonal

    $0.00

    No Image
  • 8. Door at the top

    $0.00

    No Image
  • Need help measuring? Please see our "How to Measure" page.

    $0.00

    No Image
