QuickServe II Dumbwaiter
Click to enlarge

  • The Company warrants to the original purchaser of a QuickServe II Dumbwaiter, manufactured by the Company, to be free from defects in material or workmanship during the Warranty Period defined as follows:
    2 years for batteries
    5 years for all other component parts

    Labor reimbursement is not covered by this warranty

    If defects were the result of improper installation, non-normal use, freight damage, or other terms failing to meet the conditions of this Limited Warranty as described herein, the defects would not be covered.

$5,708.00

Plus Shipping

Add to Cart

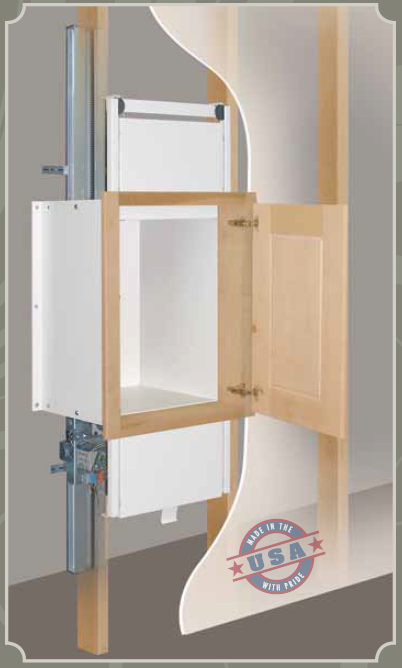

Plug and play simple installation makes installation easy and can be done in half the time as it takes to install other dumbwaiters. The QuickServe II uses a rack and pinion drive so there are no cables, chains, or drums to install. The entire motor and electronics assembly comes pre-assembled on the lower section of the track. Major features include:
  • Rack and pinion drive
  • No slack cable lock-ups
  • Battery operated
  • Fast and easy installation – plug and play
  • Aluminum rail instead of steel T-rail
  • No separate machine room required
  • No remote mounted controller
  • On board diagnostic troubleshooting LED light
  • 20" Wide x 20" Deep x 30" High – 200 lbs capacity
  • 24" Wide x 24" Deep x 30" High – 200 lbs capacity
  • 30" Wide x 30" Deep x 36" High – 275 lbs capacity
  • Optional stainless steel car
  • Warranty 5 years on motor and gear, and 2 years on all other parts

Additional Images

Click on an image to enlarge.

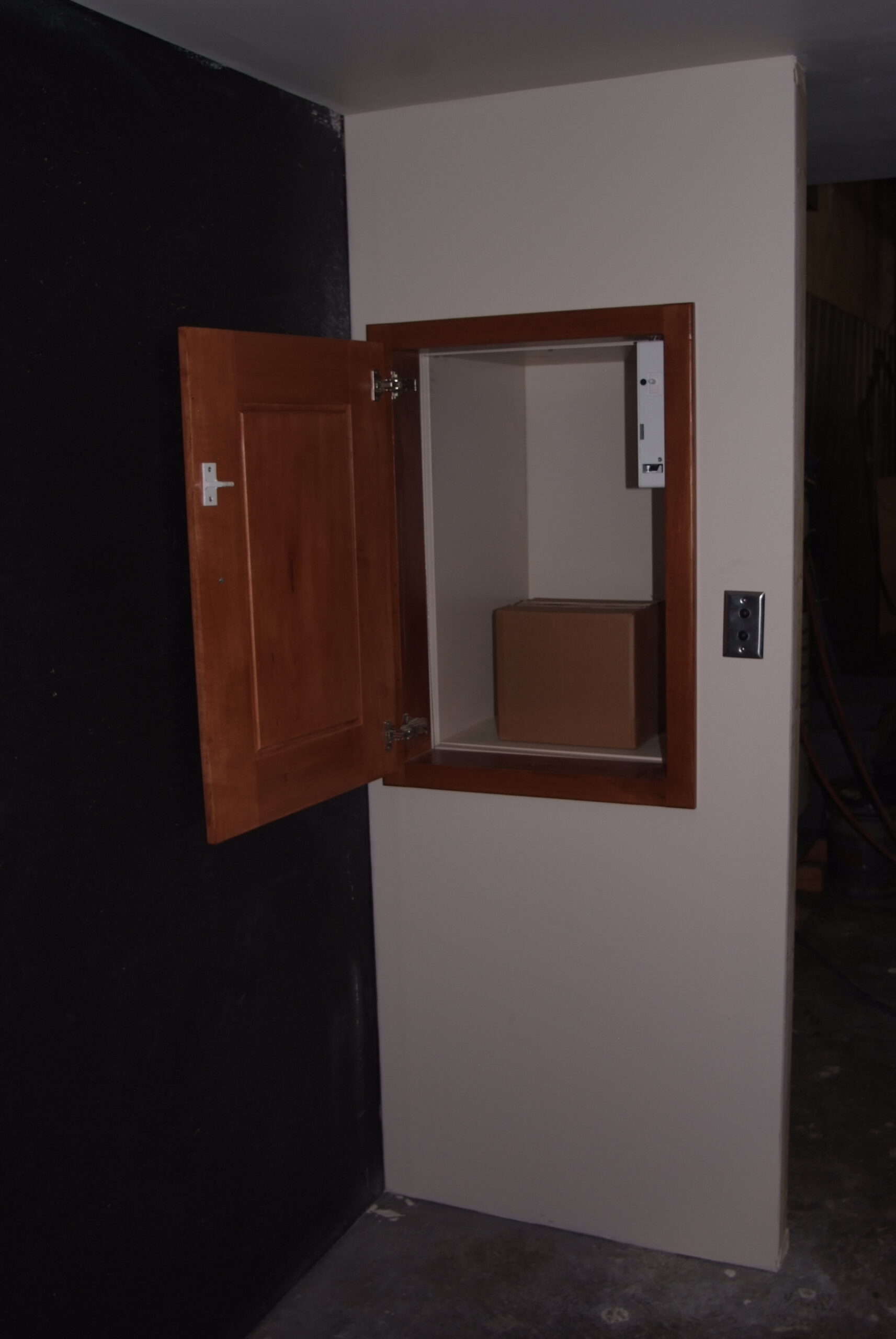

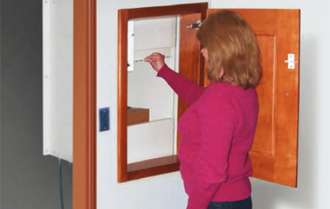

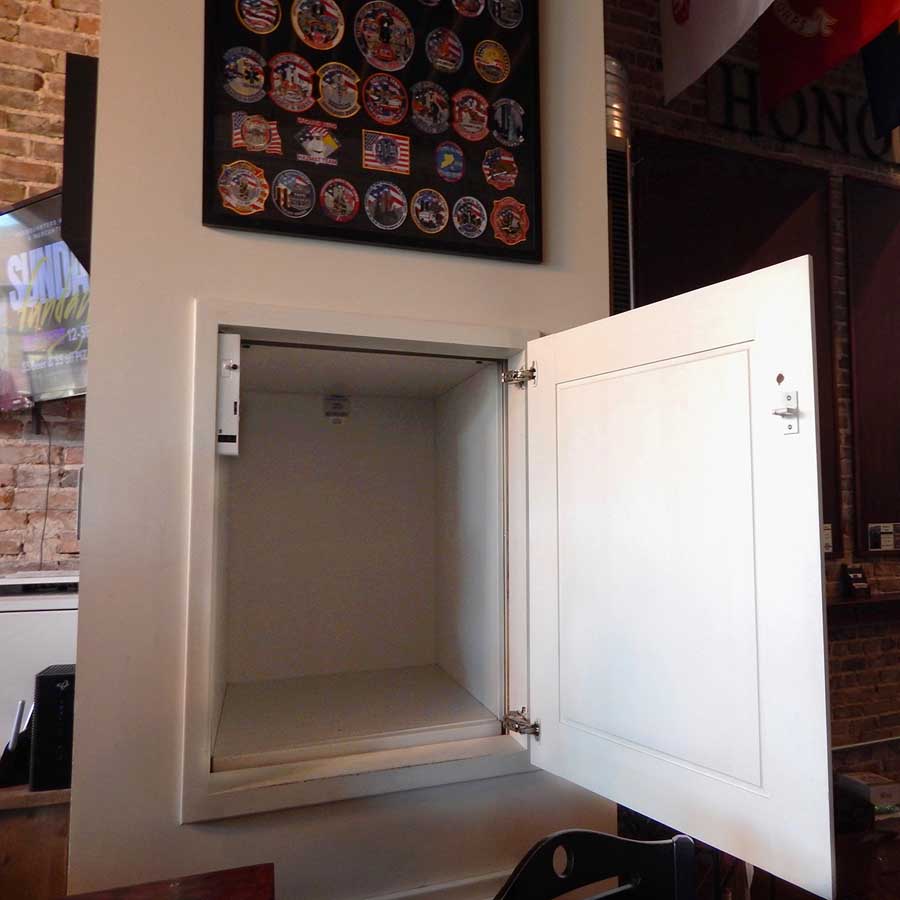

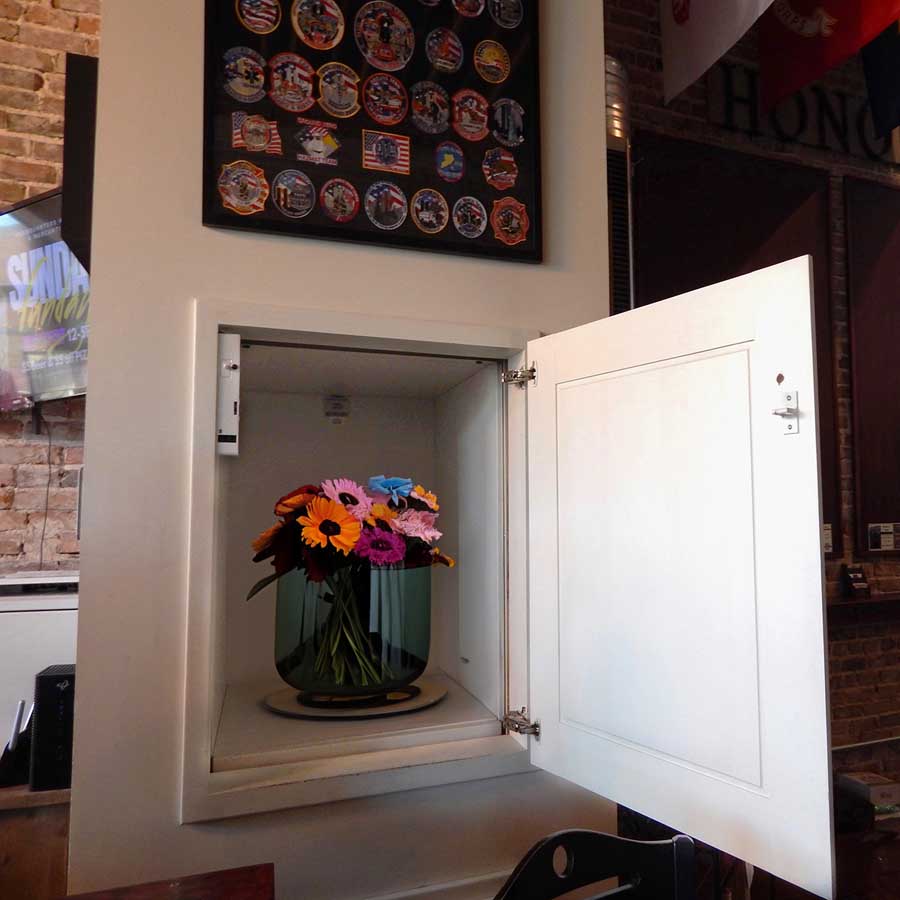

  • Shown in Use

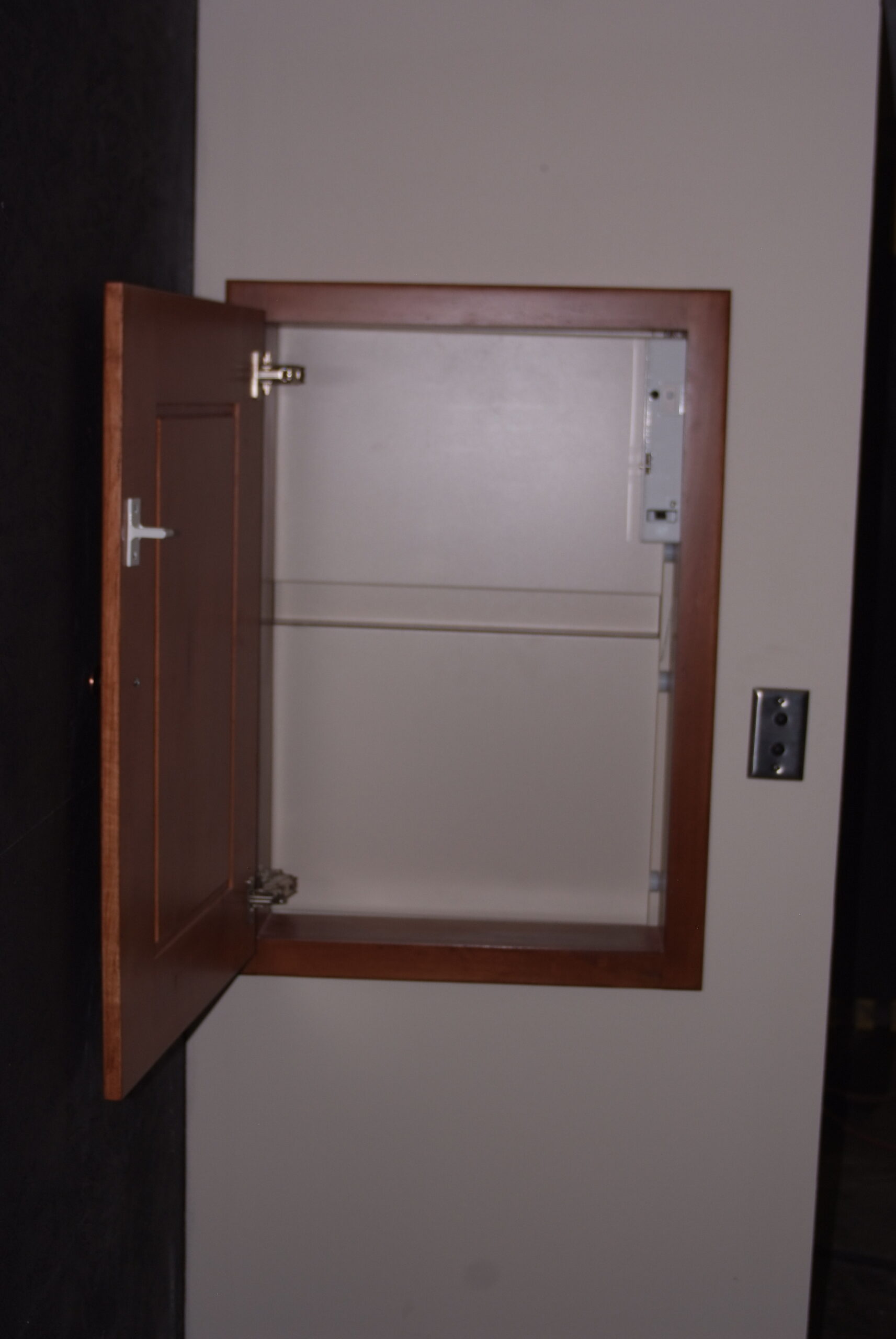

  • Shelf Inside
spacer
spacer
  • Max Travel - Standard10'
  • Max Travel - Optional30'
  • Car Size - Standard20Wx20Dx30H or 24Wx24Dx30H
  • Car Size - Optional30Wx30Dx36H
  • Stops - Standard2
  • Stops - Optional3 or 4
  • Weight Capacity - Standard200
  • Weight Capacity - Optional275
  • Stainless Steel Panel OptionYes
  • Hardwood Door OptionYes
  • Straight Through Car OptionYes
  • 90° Car OptionYes
spacer
Available Options
Click on the categories in the left column to view the options available.
  • Stops
  • Car Door Placement (in reference to the track)
  • Car Dimensions
  • Car Material
  • Car Shelf
  • Call/Send Controls
  • First Landing Door Locations
  • Second Landing Door Locations
  • Third Landing Door Locations (if 3 or 4 Stop)
  • Fourth Landing Door Locations (if 4 Stop)
  • First Landing Hoistway Door Swing
  • Second Landing Hoistway Door Swing
  • Third Landing Hoistway Door Swing (if 3 or 4 Stop)
  • Fourth Landing Hoistway Door Swing (if 4 Stop)
  • Additional Options
  • RDI Interlock
  • Track
  • Hoistway/Access Doors
  • Dumbwaiter Shipping
  • Optional Fire Proof Landing and Machine Access Doors
  • Mounting Surface For Optional Fire Proof Doors
  • Crating and Shipping Preparation for Optional Fire Proof Doors
  • Freight for Optional Fire Proof Doors
  • Delivery Option for Optional Fire Proof Doors
  • 2 Stops

    $0.00

    No Image
  • 3 Stops

    $643.00

    No Image
  • 4 Stops

    $1,358.00

    No Image

spacer

  • Front Entry

    $0.00

    Front Entry
  • Left Side Entry

    $0.00

    Left Side Entry
  • Right Side Entry

    $0.00

    Right Side Entry
  • Pass Through

    $500.00

    Pass Through
  • 90 Degree Left Side

    $643.00

    90 Degree Left Side
  • 90 Degree Right Side

    $643.00

    90 Degree Right Side

spacer

  • 20"W x 20"D x 30"H (200 LB Capacity)

    $0.00

    No Image
  • 24"W x 24"D x 30"H (200 LB Capacity)

    $572.00

    No Image
  • 30"W x 30" D x 36"H (275 LB Capacity)

    $715.00

    No Image
  • Custom Cab Size

    $1,358.00

    No Image

spacer

  • Standard Coated Steel Panels (any size)

    $0.00

    No Image
  • Stainless Steel Panels Must Match Car Dimensions Above

    $0.00

    No Image
  • Stainless Steel 20"W x 20"D x 30"H

    $2,286.00

    No Image
  • Stainless Steel 24"W x 24"D x 30"H

    $2,572.00

    No Image
  • Stainless Steel 30"W x 30" D x 36"H

    $3,143.00

    No Image
  • Stainless Steel Custom Size

    $3,429.00

    No Image

spacer

  • Up to 4 Total

    $0.00

    No Image
  • No Optional Car Shelf

    $0.00

    No Image
  • Adjustable Wire Rack Car Shelf

    $143.00

    No Image
  • Sliding Shelf

    $500.00

    No Image
  • Metal Powder Coated Shelf

    $215.00

    No Image
  • Stainless Steel Car Shelf

    $500.00

    No Image

spacer

  • 1 RF Call Station Per Stop

    $0.00

    No Image
  • Key Lock on RF Call Station

    $72.00

    No Image
  • Car Here Indicator on RF Call Station

    $143.00

    No Image
  • Upgrade from RF Call Station to Wired Call/Send (per Station)

    $72.00

    No Image

spacer

  • Front

    $0.00

    No Image
  • Rear

    $0.00

    No Image
  • Left Side

    $0.00

    No Image
  • Right Side

    $0.00

    No Image

spacer

  • Front

    $0.00

    No Image
  • Rear

    $0.00

    No Image
  • Left Side

    $0.00

    No Image
  • Right Side

    $0.00

    No Image

spacer

  • None

    $0.00

    No Image
  • Front

    $0.00

    No Image
  • Rear

    $0.00

    No Image
  • Left Side

    $0.00

    No Image
  • Right Side

    $0.00

    No Image

spacer

  • None

    $0.00

    No Image
  • Front

    $0.00

    No Image
  • Rear

    $0.00

    No Image
  • Left Side

    $0.00

    No Image
  • Right Side

    $0.00

    No Image

spacer

  • Door Hinged on the Right

    $0.00

    No Image
  • Door Hinged on the Left

    $0.00

    No Image

spacer

  • Door Hinged on the Right

    $0.00

    No Image
  • Door Hinged on the Left

    $0.00

    No Image

spacer

  • No Third Stop

    $0.00

    No Image
  • Door Hinged on the Right

    $0.00

    No Image
  • Door Hinged on the Left

    $0.00

    No Image

spacer

  • No Fourth Stop

    $0.00

    No Image
  • Door Hinged on the Right

    $0.00

    No Image
  • Door Hinged on the Left

    $0.00

    No Image

spacer

  • Automatic Car Lighting

    $108.00

    No Image
  • Automatic Homing

    $429.00

    No Image
  • Select Landing for Automatic Homing (if selected above, bottom is #1)

    $0.00

    No Image

spacer

  • RDI Interlocks (1 per Stop Included)

    $0.00

    No Image
  • NOTE: if any stop has more than one access opening, order additional Interlocks

    $0.00

    No Image
  • Additional RDI Interlocks

    $429.00

    No Image
  • Upgrade RDI to Commercial Interlock (per Interlock)

    $215.00

    No Image

spacer

  • 10' of Extruded Aluminum Track Included

    $0.00

    No Image
  • Extra Track Per Foot (Over 10')

    $58.00

    No Image

spacer

  • No Optional Hoistway Doors

    $0.00

    No Image
  • Unfinished Poplar Hoistway Door

    $500.00

    No Image
  • Unfinished Maple Hoistway Door

    $715.00

    No Image
  • Machine Access Door (20" x 20") Includes RDI Interlock - Unfinished Poplar

    $500.00

    No Image
  • Machine Access Door (20" x 20") Includes RDI Interlock - Unfinished Maple

    $715.00

    No Image

spacer

  • Shipping to Nearest Freight Terminal/ Loading Dock In or Near Your Zip Code (lower 48)

    $0.00

    No Image
  • Call for Price to ship to Alaska or Hawaii

    $0.00

    No Image

spacer

  • Stainless Steel (#4 finish) Swing Door - 1.5 Hour Fire Rated

    $0.00

    No Image
  • 20" W x 30" H - Right Hand

    $1,397.00

    No Image
  • 20" W x 30" H - Left Hand

    $1,397.00

    No Image
  • 24" W x 30" H - Right Hand

    $1,397.00

    No Image
  • 24" W x 30" H - Left Hand

    $1,397.00

    No Image
  • 30" W x 36" H - Right Hand

    $1,556.00

    No Image
  • 30" W x 36" H - Left Hand

    $1,556.00

    No Image
  • Machine Access Door

    $0.00

    No Image
  • 18" W x 18" H Stainless Steel - Right Hand

    $1,000.00

    No Image
  • 18" W x 18" H Stainless Steel - Left Hand

    $1,000.00

    No Image

spacer

  • Dry Wall Mounted

    $0.00

    No Image
  • Masonry Wall Mounted

    $0.00

    No Image

spacer

  • No Optional Fire Proof Doors Ordered

    $0.00

    No Image
  • Up to 3 Doors

    $462.00

    No Image
  • Additional (per door) for Over 3 Doors (must select "Up to 3 Doors" also)

    $154.00

    No Image

spacer

  • No Optional Fire Proof Doors Ordered

    $0.00

    No Image
  • Freight for Up to 3 Doors

    $770.00

    No Image
  • Freight for 4 Doors

    $847.00

    No Image
  • Freight for 5 Doors

    $1,001.00

    No Image
  • Freight for 6 or More Doors (call for quote)

    $0.00

    No Image
  • Call for Price to Ship Outside the Contiguous 48 US States

    $0.00

    No Image

spacer

  • Liftgate Service (if needed for doors at the delivery point)

    $231.00

    No Image

spacer
